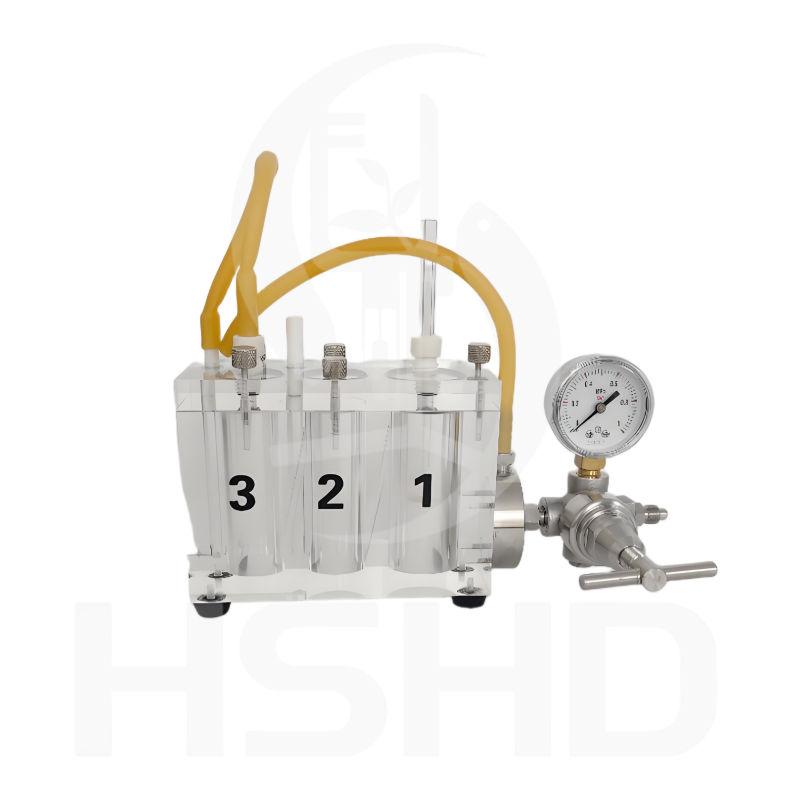

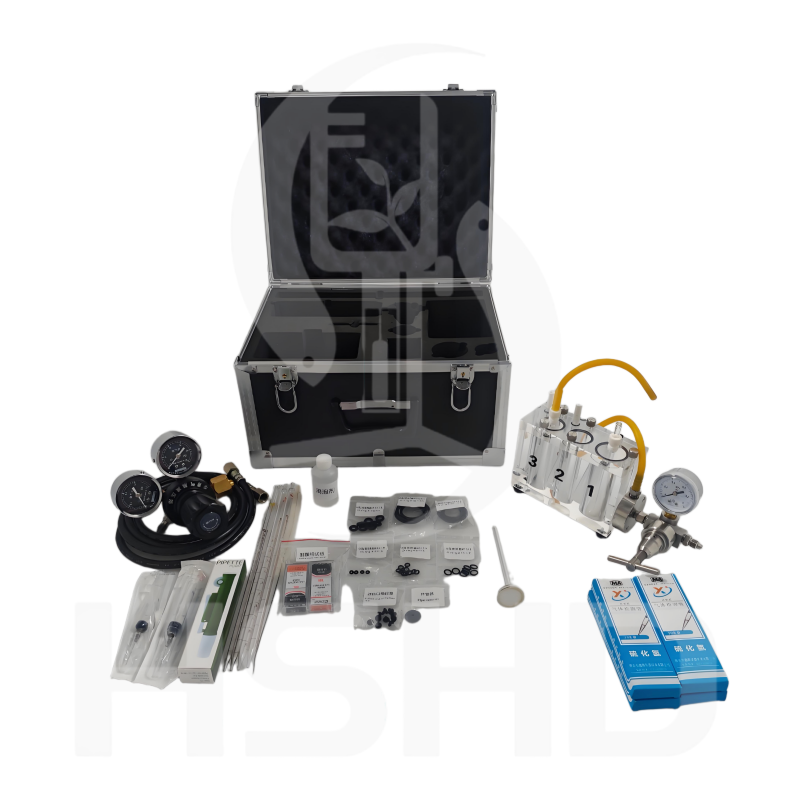

Garrett Gas Train HSHD-1807

Model HSHD-1807 the Garrett Gas Train is used to determine the soluble sulfide content in drilling fluid. Soluble sulfides include hydrogen sulfide (H₂S), sulfur ions (S²¯), and hydrogen sulfide ions (HS^¯). Acidify the drilling fluid filtrate in the Garrett gas separator to convert all sulfides into H₂S, which is carried out by the carrier gas foaming the sample.

Inquiry Us

1.Overview

The Garrett Gas Train is used to determine the soluble sulfide content in drilling fluid. Soluble sulfides include hydrogen sulfide (H₂S), sulfur ions (S²¯), and hydrogen sulfide ions (HS^¯). Acidify the drilling fluid filtrate in the Garrett gas separator to convert all sulfides into H₂S, which is carried out by the carrier gas foaming the sample.

2.Model and Specifications

Model	Name
HSHD-1807	Garrett Gas Train

3.Main Technical Parameters

No.	Category	Specification
1	Gas Separation Unit Chamber 1	Height 90mm, diameter 38mm
2	Gas Separation Unit Chamber 2	Height 90mm, diameter 30mm
3	Gas Separation Unit Chamber 3	Height 90mm, diameter 30mm
4	Gas separation channel	Diameter 2mm
5	Dräger H₂S analysis tube for low concentration range	Marked with H₂S 100/a
