1.Overview

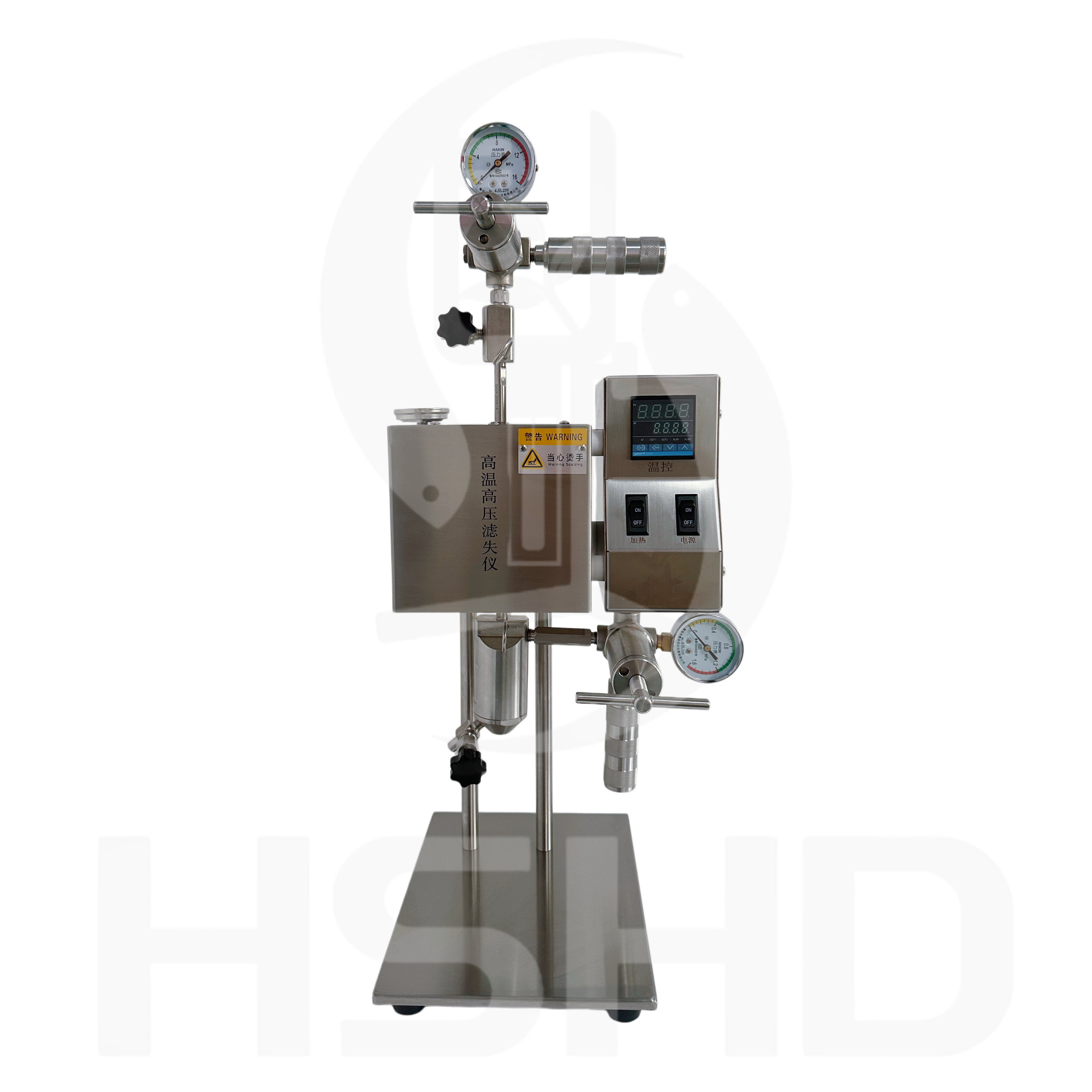

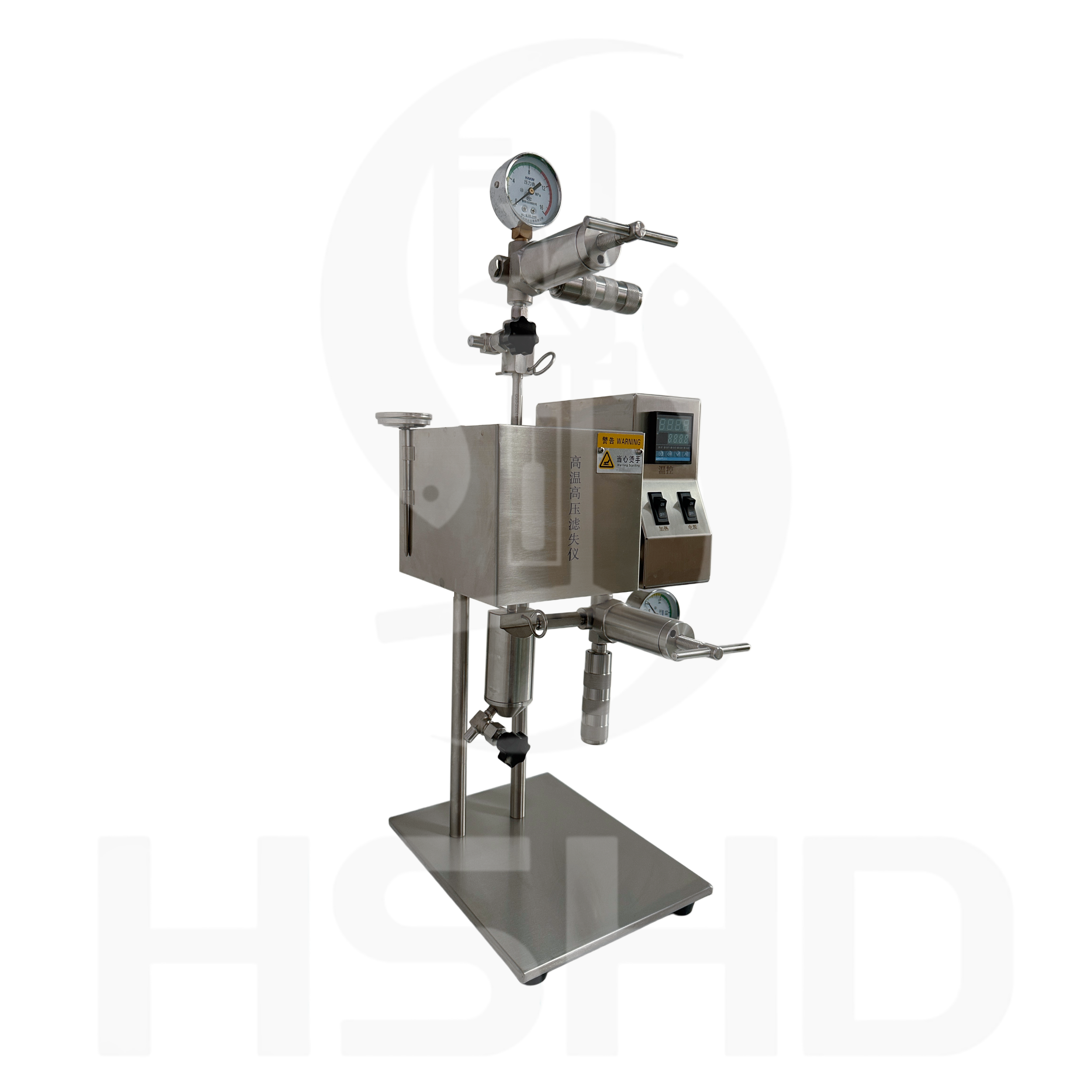

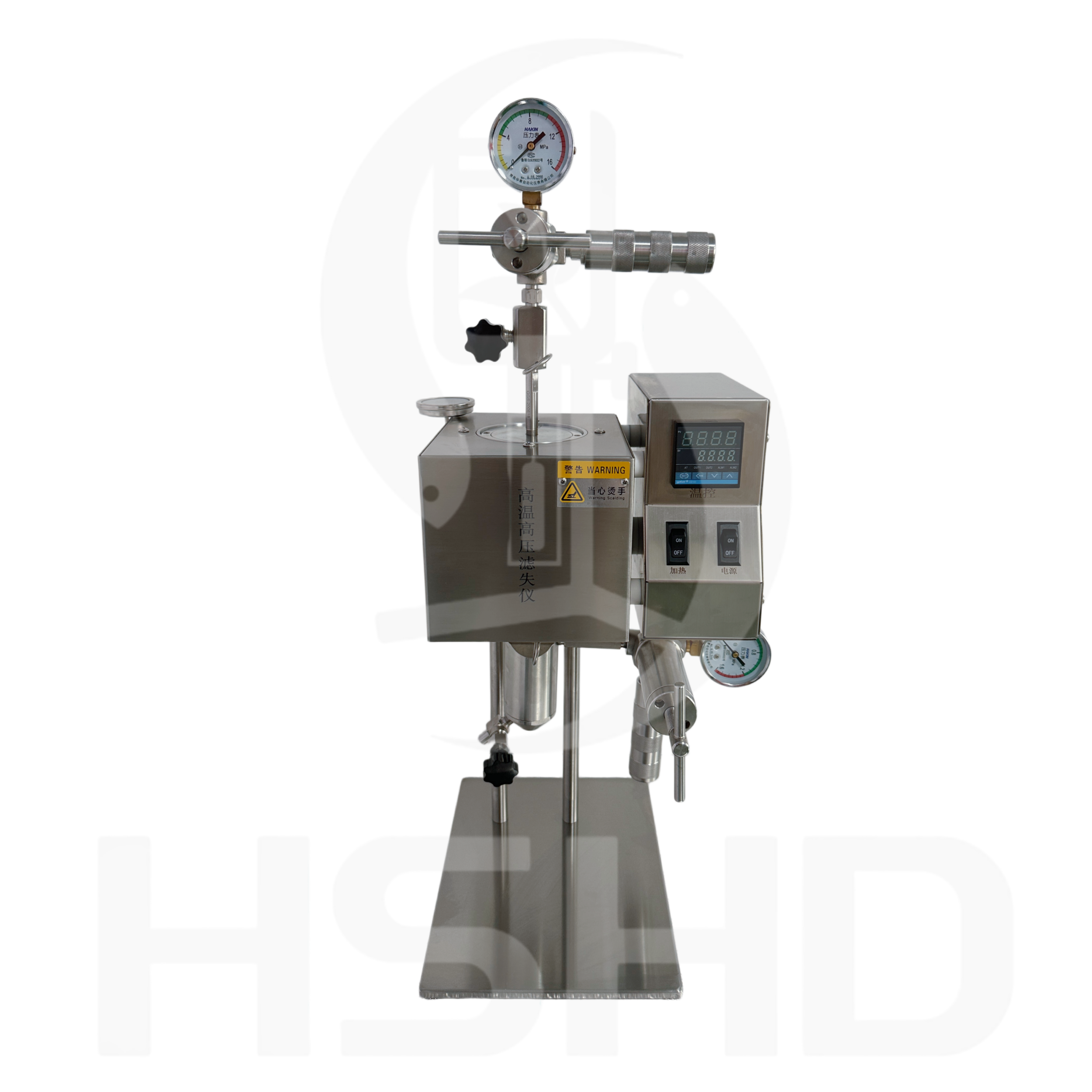

The HSHD-3019 HPHT Filter Press is a device that simulates the filtration rate of drilling fluid and cement slurry in deep wells (high temperature and high pressure), and can simultaneously produce the filter cake formed after filtration under high temperature and high pressure conditions. It has the characteristics of high accuracy, small repetition error, simple operation, and accurate test data. Widely used in various oil fields, research institutes, laboratories, and other departments.
2.Model and Specifications
| Model | Name | Gas source |
| HSHD-3019 | HPHT Filter Press | Gas Bomb |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Requirements | 220V±5% 50Hz 450W |
| 2 | Maximum Operating Temperature | 180℃ |
| 3 | Maximum Working Pressure | 4.2MPa |
| 4 | Maximum Back Pressure | 0.69MPa |
| 5 | Filtering Area | 22.6cm2 |
| 6 | Sample Cell Volume | 175 ml |
