1.Overview
The Model HSHD-2006A Marsh funnel viscometer is an instrument used for daily measurement of drilling fluid viscosity. Made according to American API standards, the viscosity of drilling fluid is determined by quantifying the time it takes for the drilling fluid to flow out of the funnel. Simple structure and easy to use. Widely used in departments such as petroleum and geological exploration.
2.Model and Specifications
| Model | Name | Configuration |

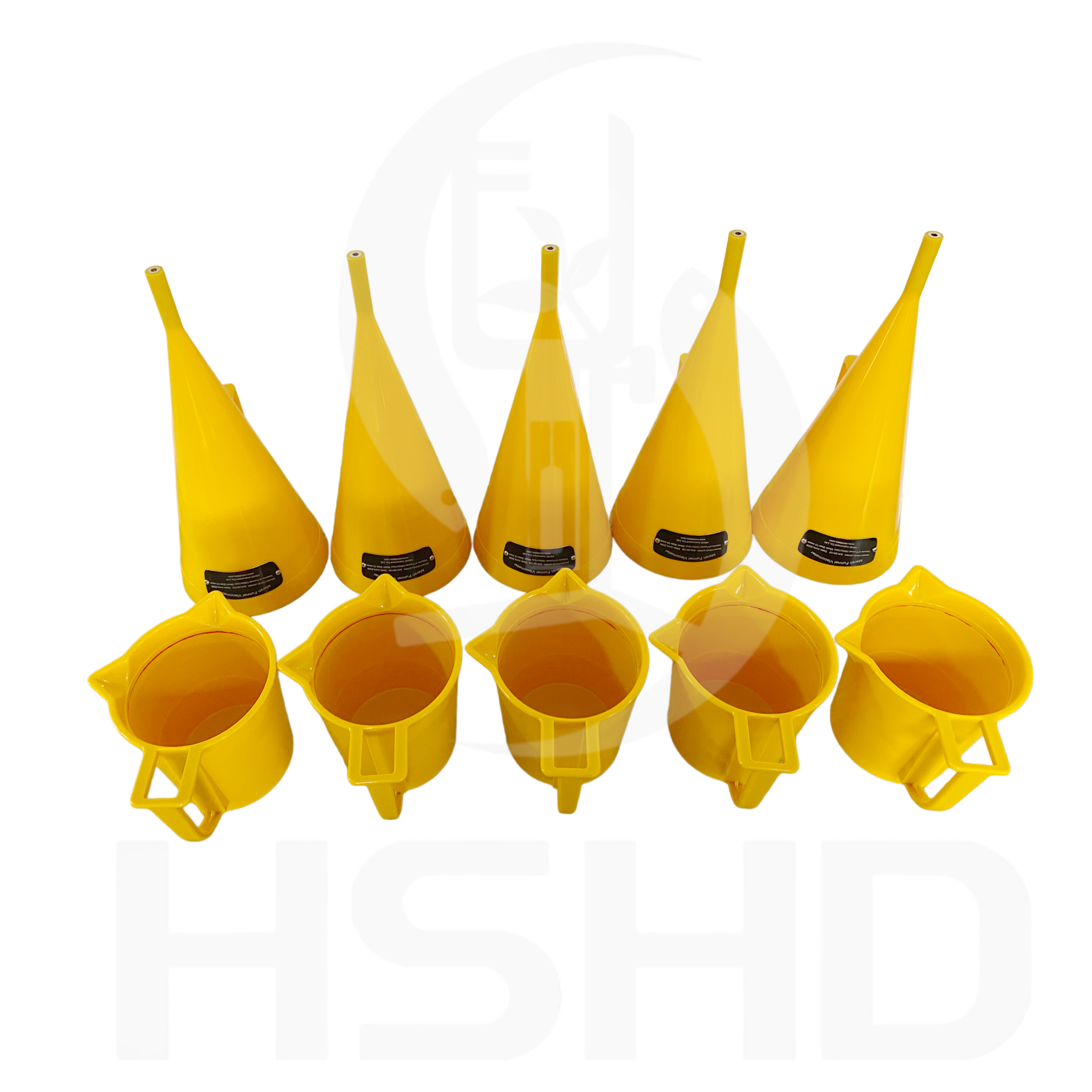

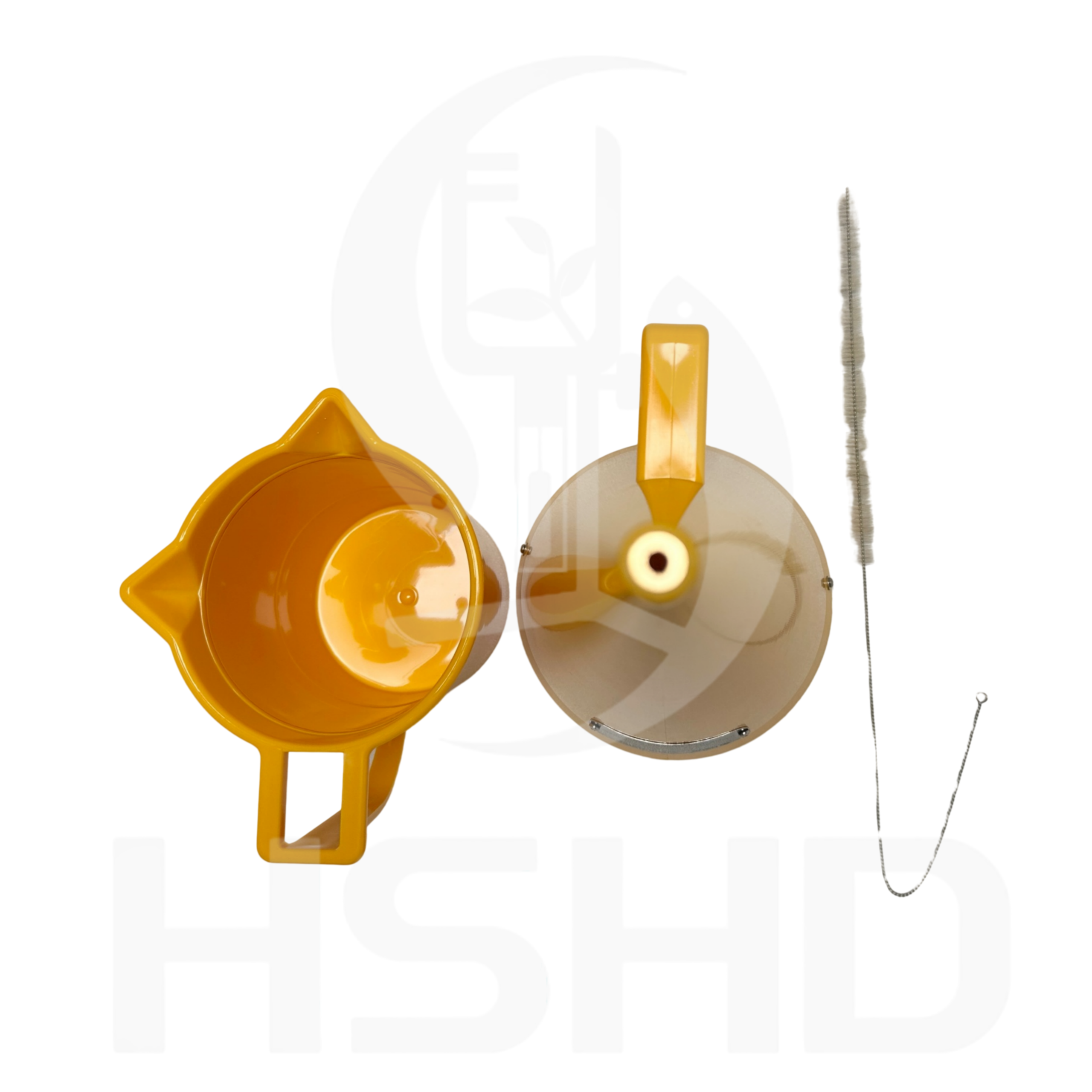

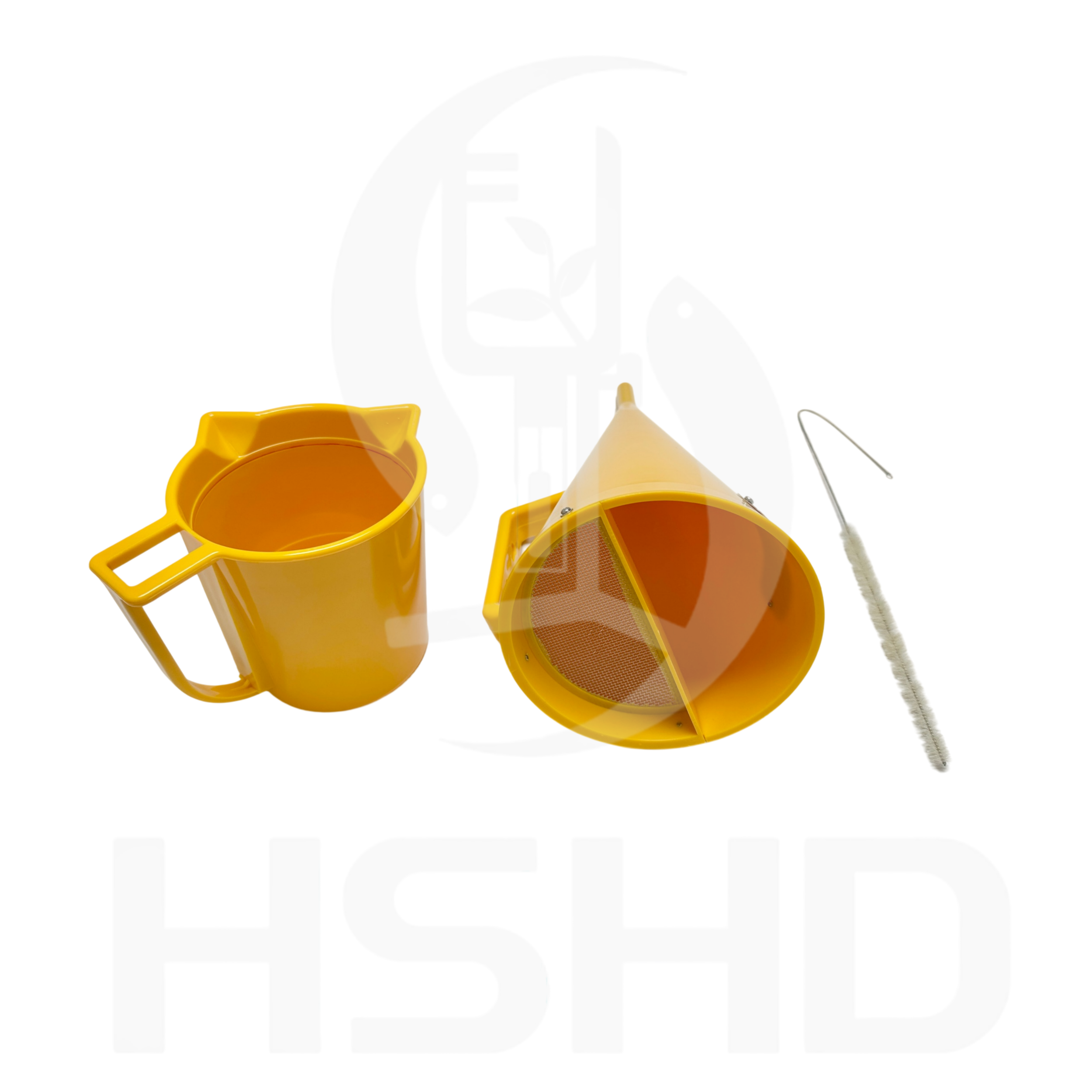

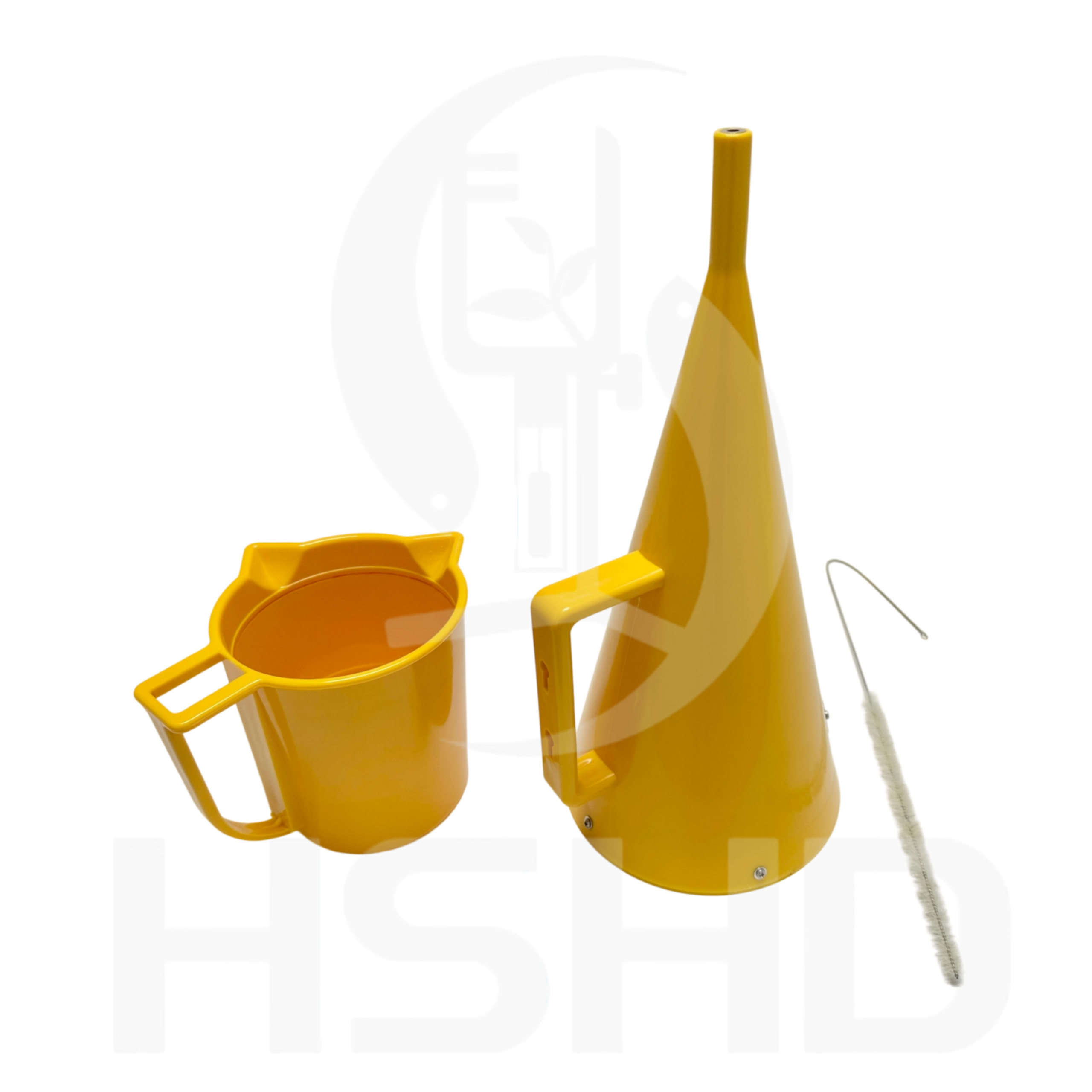

| HSHD-2006A | Marsh Funnel Viscometer | Plastic funnel
Plastic liquid cup |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Mesh aperture | 1.6mm (12 mesh) |
| 2 | Capacity below the bottom of the funnel net | 1500ml |
| 3 | Accuracy | When injecting 1500ml of standard distilled water into the funnel, the time for 946ml of standard distilled water to flow out is 26 ± 0.5s |
