1.Overview

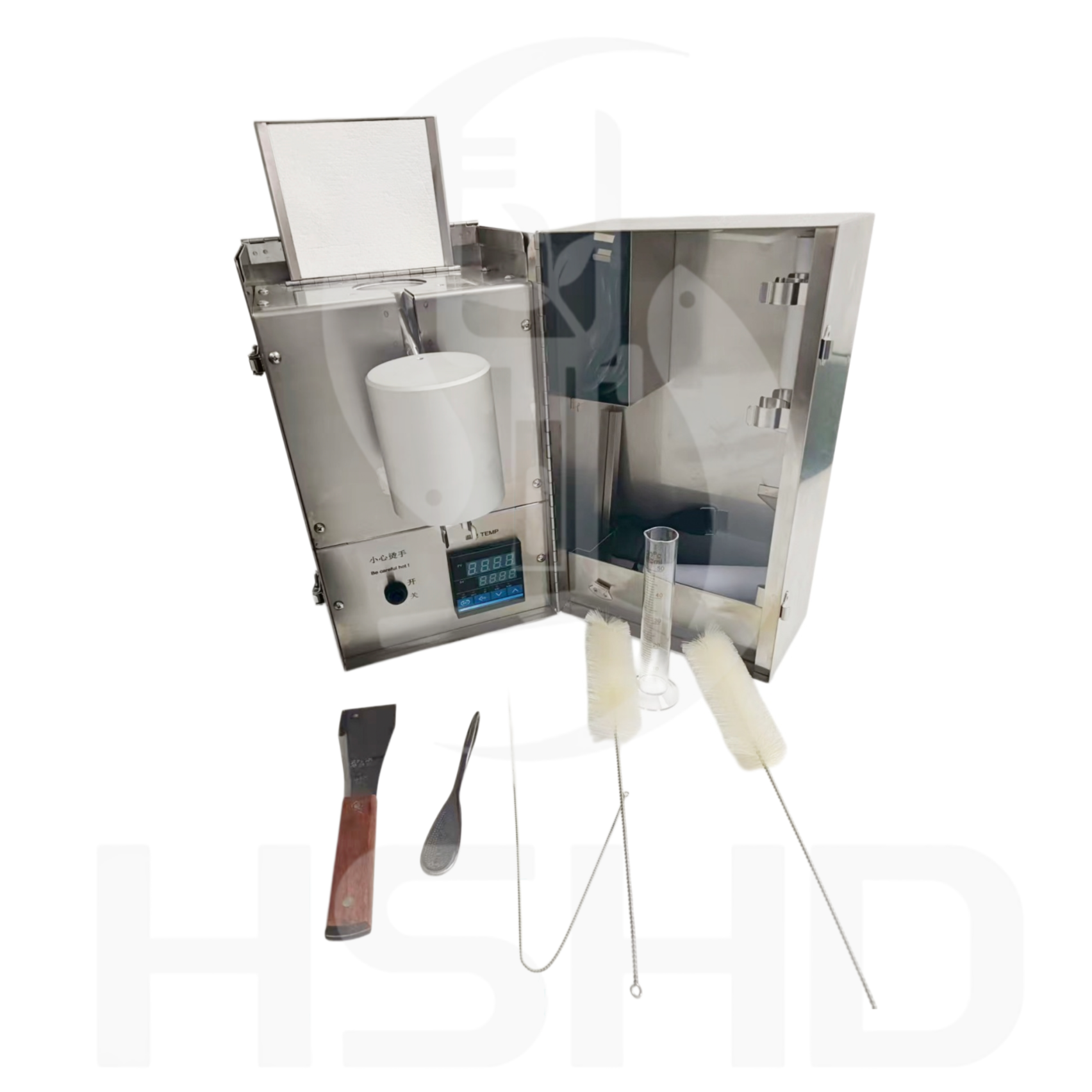

Model HSHD-7005 Retort Kit is is an instrument used to separate and determine the volume of water, oil, and solid phase in drilling fluid samples. The instrument adopts external heating distillation method to avoid dry burning (overheating) caused by internal heating. The 50ml large capacity distillation body adopts intelligent temperature control to determine the liquid phase separation at a certain temperature. It is the basis for understanding the solid phase concentration and composition, viscosity, and filtration control of water-based or oil-based drilling fluids.
2.Model and Specifications
| Model | Name | Feature |
| HSHD-7005 | Retort Kit | 1. Temperature control meter for temperature control
2. External heating 3. Three phase separation of oil, water, and solid |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | power supply | AC220V±5% 50/60Hz 1000w |
| 2 | Distilled body capacity | 50±0.2ml |
| 3 | Liquid recovery rate | ＞98% |
| 4 | Maximum heating temperature | 480℃ |
