1.Overview

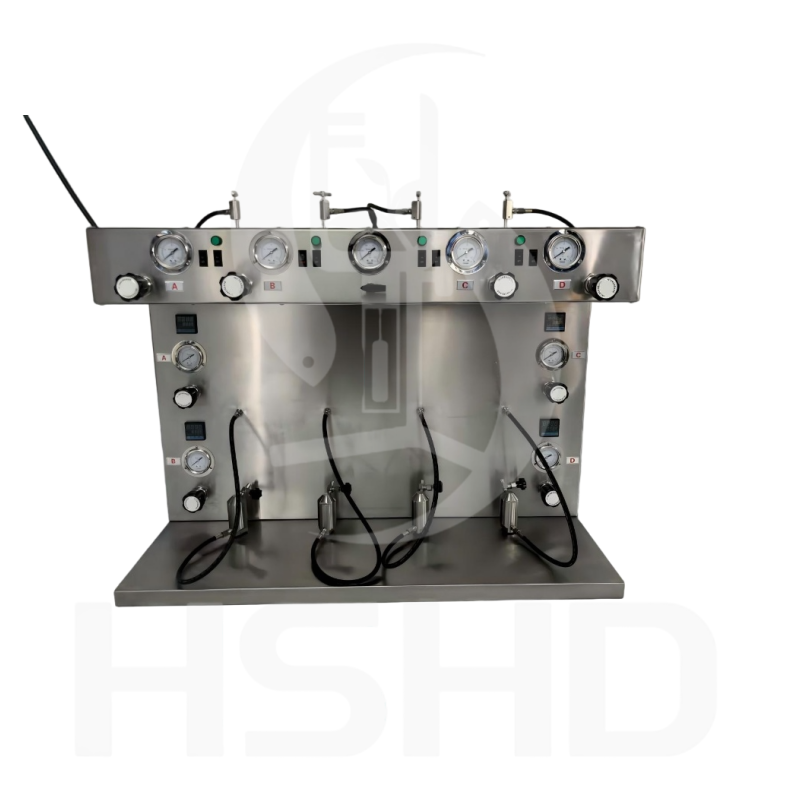

The HSHD-3033-4L Unitized HPHT Filter Press is designed with four sets of heating devices. Four 175ml mud cups can be tested simultaneously. Each heating device can independently control the heating temperature and two pressure regulators (gas supply valve and receiver), and can also be used for independent testing..
2.Model and Specifications
| Model | Name | Gas source |
| HSHD-3033-4L | Unitized HPHT Filter Press | Nitrogen |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Requirements | 220V±5% 50Hz 4KW |
| 2 | Maximum Operating Temperature | ＜180℃（±1℃） |
| 3 | Maximum Working Pressure | 4.2MPa |
| 4 | Maximum Back Pressure | 0.69MPa |
| 5 | Filtering Area | 22.6cm2 |
| 6 | Sample Cell Volume | 175 ml*4 |
| 7 | Gas Source | Nitrogen |
