1. Overview

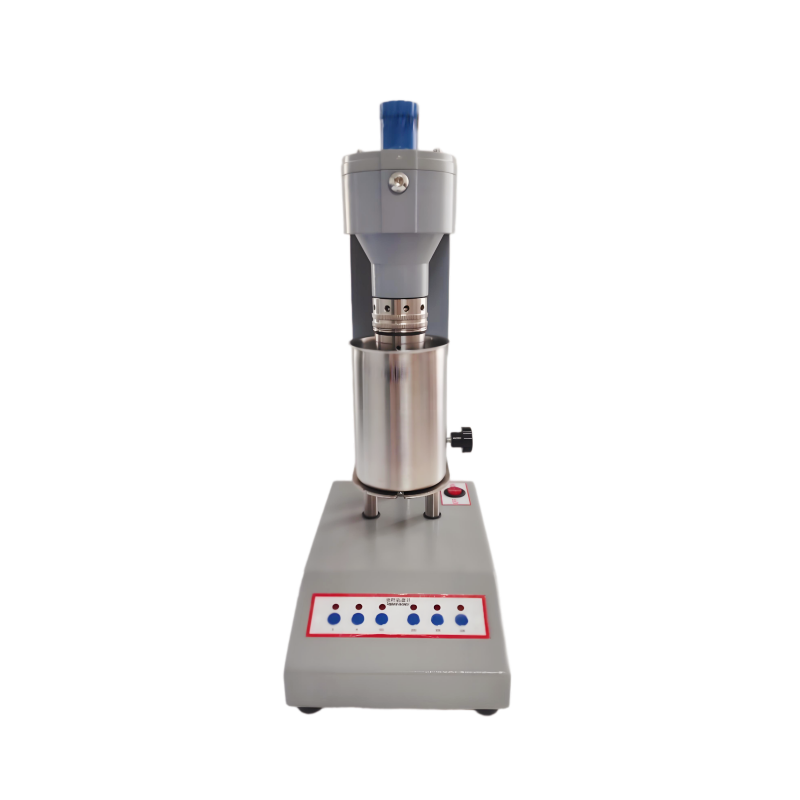

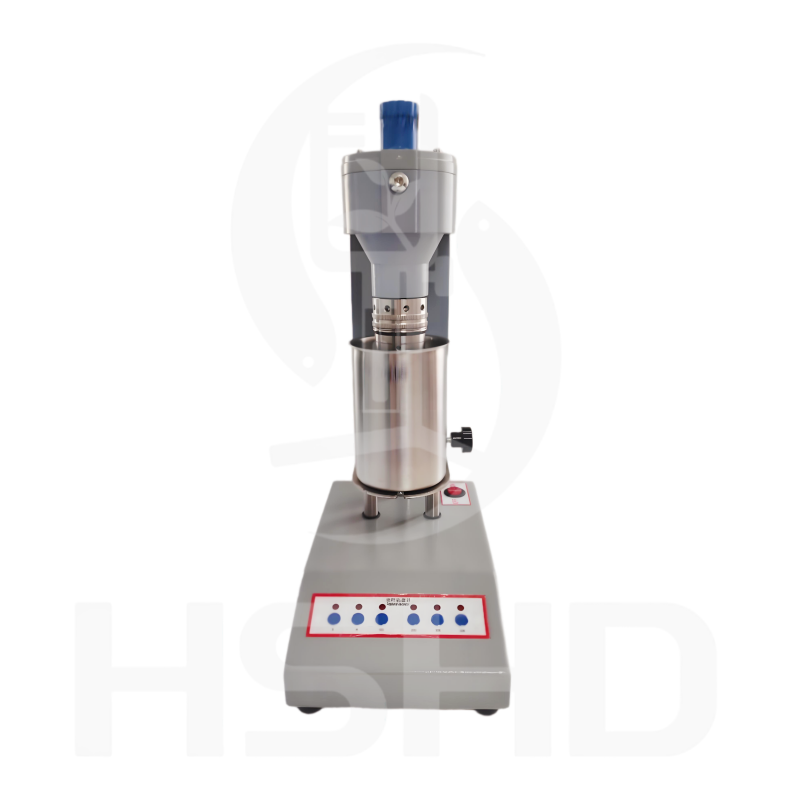

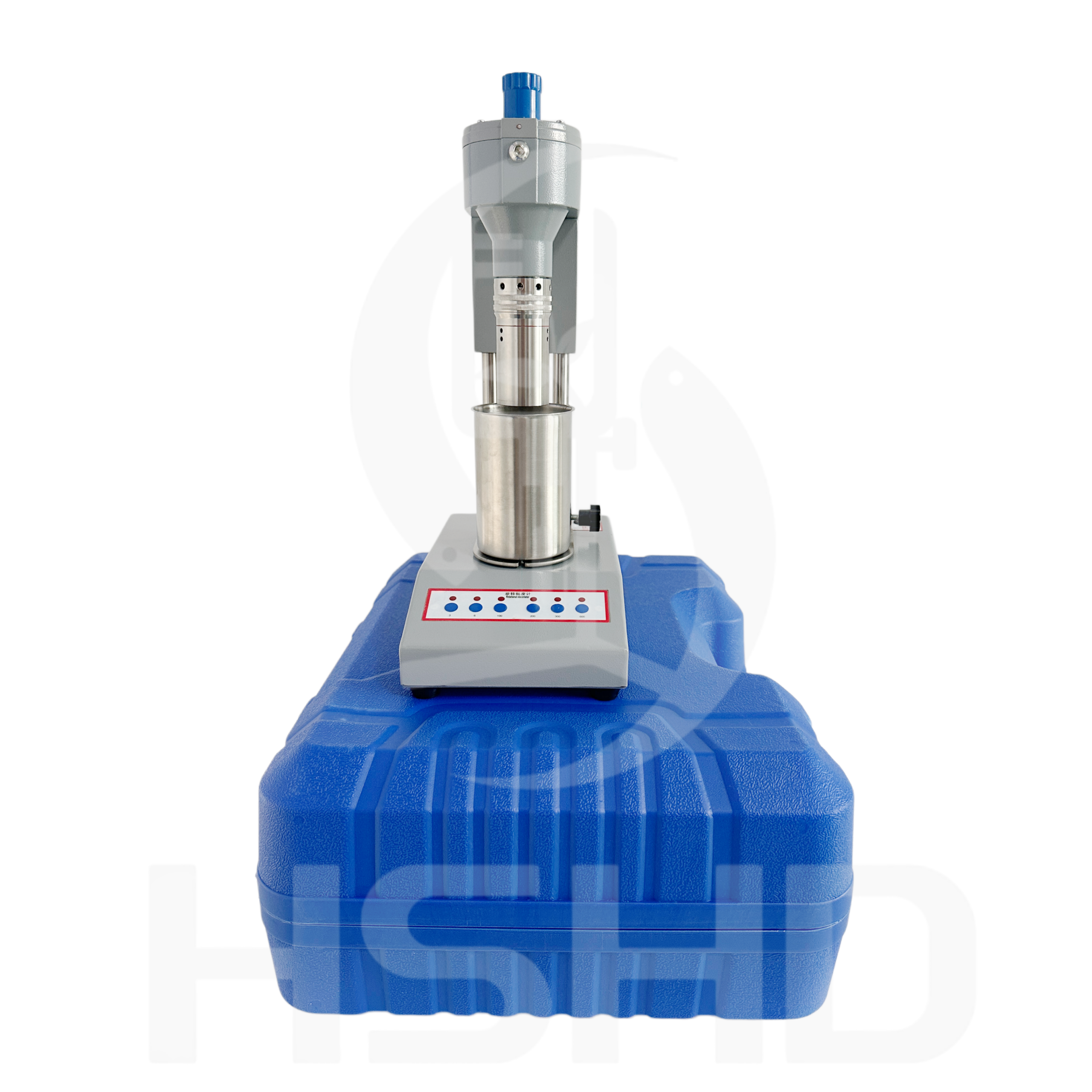

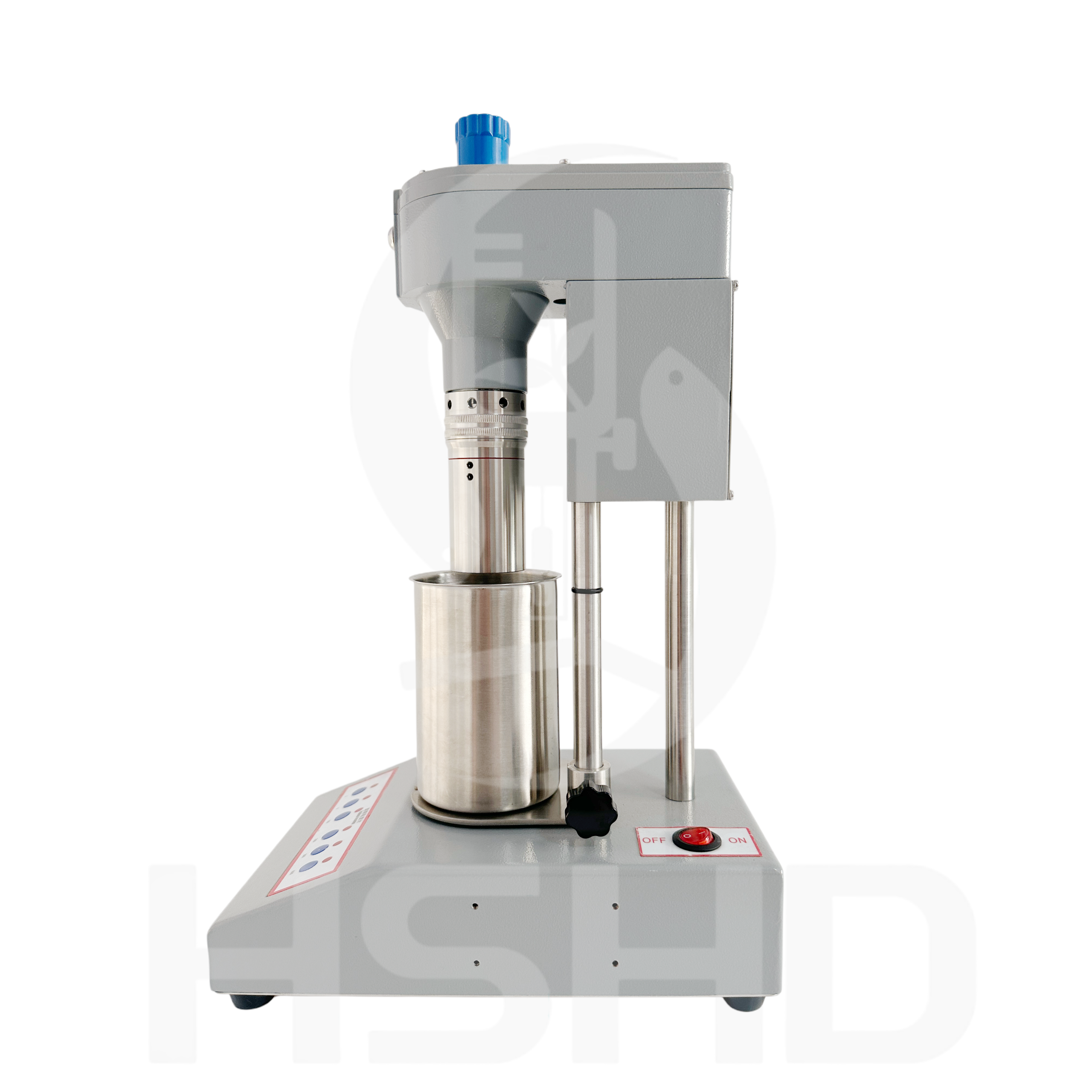

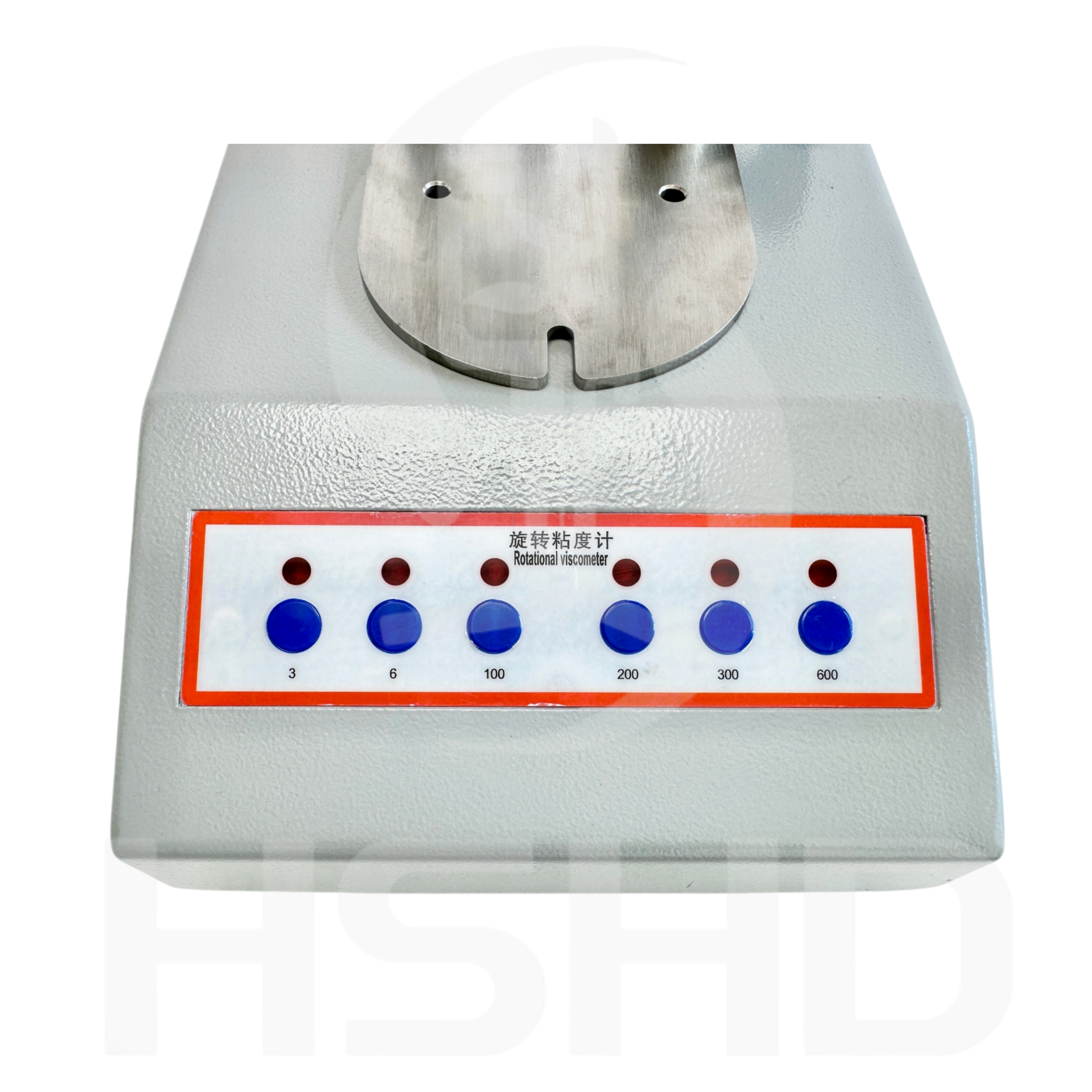

The six speed rotational viscometer has been changed from traditional mechanical transmission to microcontroller control, resulting in more stable data over long-term use. Draw rheological curves based on multi-point measurement values, determine the flow pattern of liquids during the flow process, select appropriate calculation formulas, and accurately measure non Newtonian fluids for the study and analysis of rheological parameters of drilling fluids on site. At the same time, a series of technical parameters such as dynamic, static shear force, flowability index, and viscosity coefficient can be determined. Beneficial to the needs of safe, fast, and scientific drilling. This product uses high-quality stepper motors and synchronous belts, with button type speed regulation that is easy to operate, aesthetically pleasing, has a low failure rate, and is easy to maintain.
2.Model and Product Name
| Model | Product Name | Configuration |
| HSHD-1003 | Viscometer | R1-B1-F1 |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Supply | 220V±5% 50Hz |
| 2 | Motor power | 40W |
| 3 | Motor speed | 800r/min |
| 4 | Variable speeds range | 3、6、100、200、300、600r/min |
| 5 | Velocity gradient | 5.11、10.22、170.33、340.66、511、1022 S-1 |
| 6 | Measurement accuracy | 1~25 mPa. s±1 mPa.s(Newtonian fluid)
Measurement value above 25 mPa. s ± 4% |

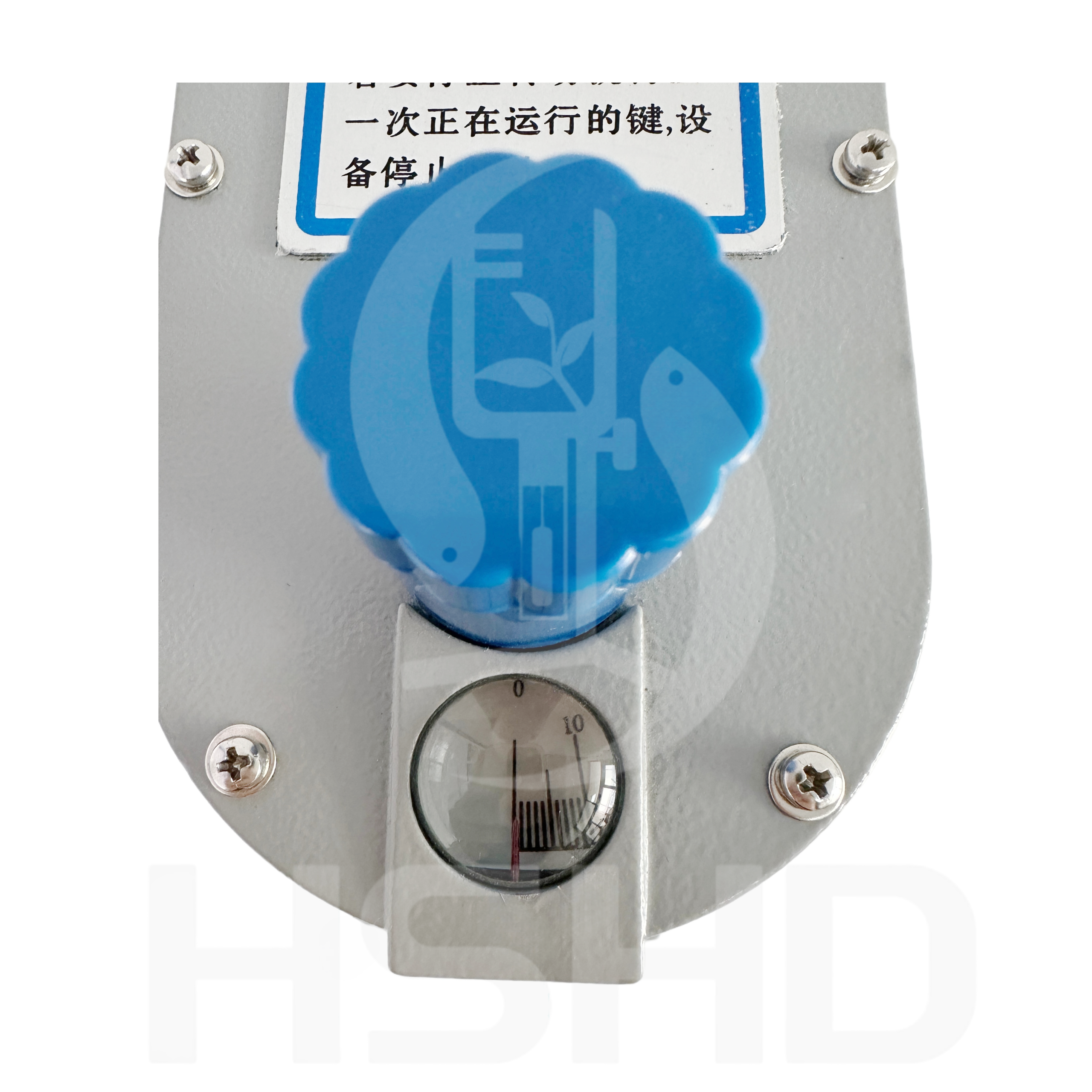

| 7 | Display | Direct-reading |
| 8 | Viscosity measurement range | Newtonian fluid：0.5～30000mPa.s (F1)
Non-Newtonian fluid：1~150 mPa.s (F1) Shear stress： 0~153.3Pa (F1) |
