1.Overview
The rotational viscometer can measure various rheological parameters, draw rheological curves based on multi-point measurement values, determine the flow pattern of liquids during the flow process, select appropriate calculation formulas, and accurately measure non Newtonian fluids for the study and analysis of rheological parameters of drilling fluids on site. At the same time, it can measure a series of technical parameters such as dynamic, static shear force, flowability index, and viscosity coefficient. Beneficial to the needs of safe, fast, and scientific drilling. This product adopts domestically produced high-quality synchronous motors and synchronous belts for transmission, with button type speed regulation. It has the characteristics of easy operation, accurate testing, low failure rate, and convenient maintenance.
2.Model and Product Name
| Model | Product Name | Configuration |

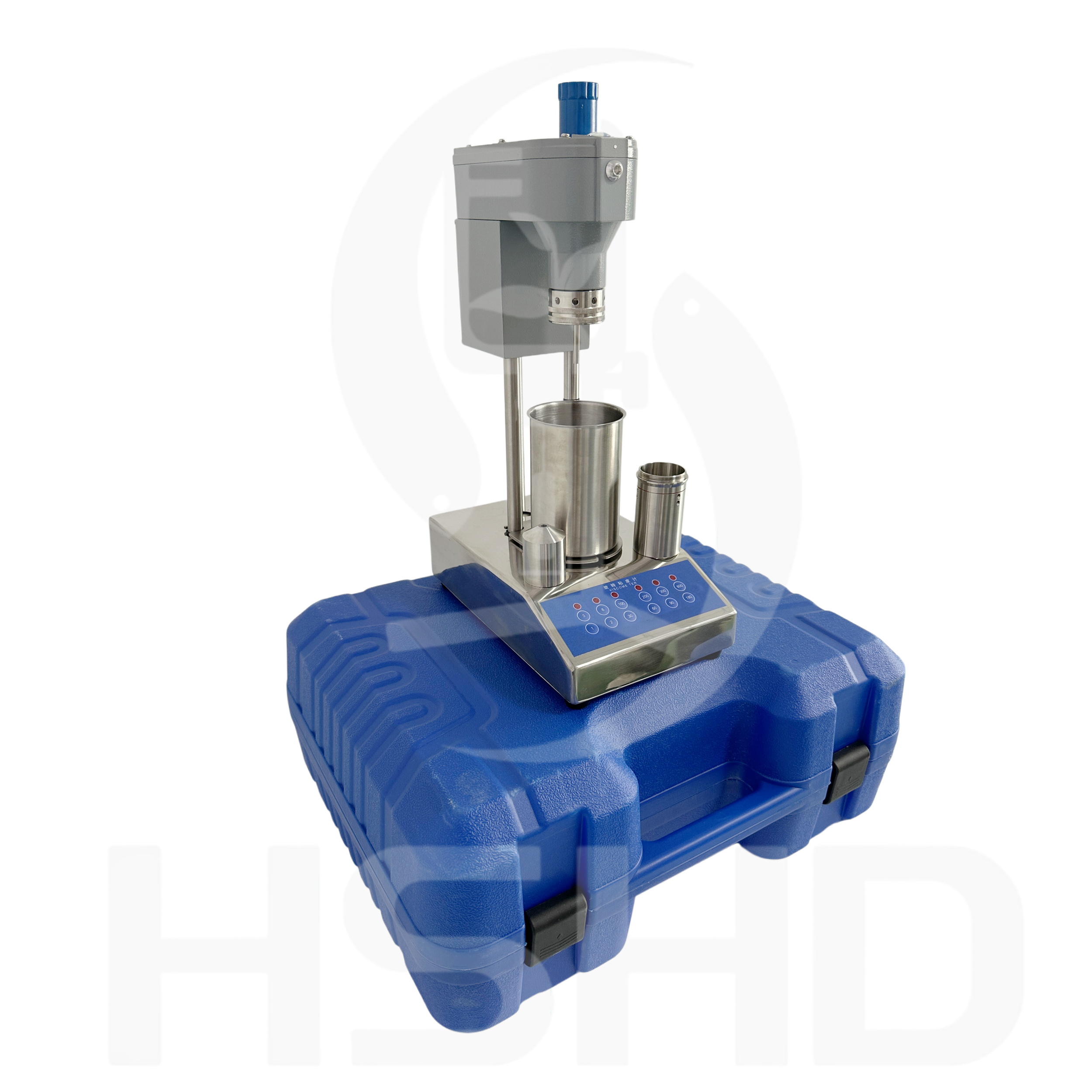

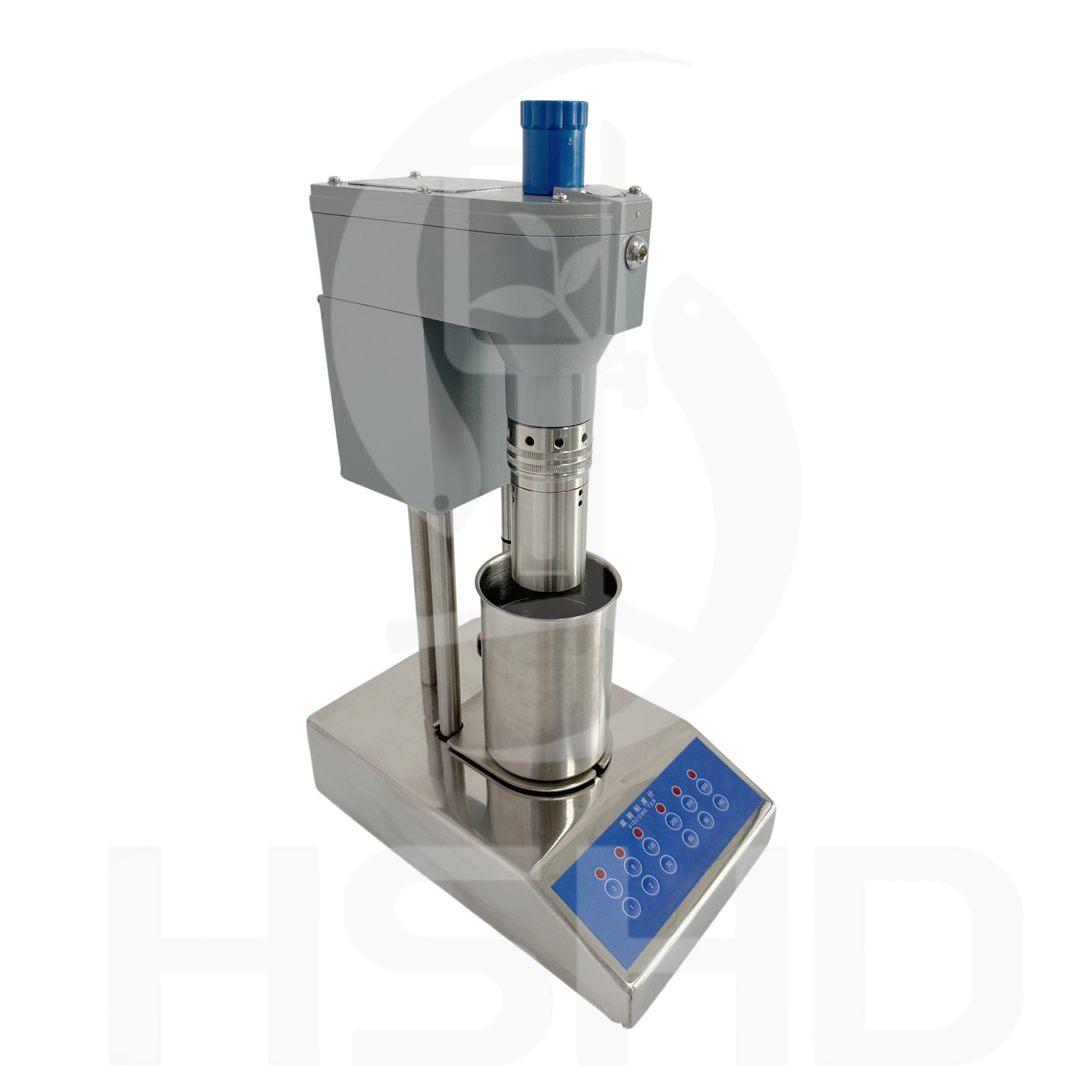

| HSHD-1007 | Viscometer | R1-B1-F1 |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Supply | 220V±5% 50Hz |
| 2 | Motor Power | 40W |
| 3 | Variable Speeds Range | 1、2、3、6、30、60、90、100、180、200、300、600r/min |
| 4 | Velocity Gradient | 1.703、3.41、5.11、10.22、51.1、102.2、153.29、170.33、306.6/346.6、511、1022 S-1 |
| 5 | Measurement Accuracy | 1~25 mPa. s±1 mPa.s(Newtonian fluid)
Measurement value above 25 mPa. s ± 4% |
| 6 | Display | Direct-reading |
| 7 | Viscosity Measurement Range | Newtonian fluid：0.5～30000mPa.s (F1)
Non-Newtonian fluid：1~150 mPa.s (F1) Shear stress： 0~153.3Pa (F1) |
