1.Overview

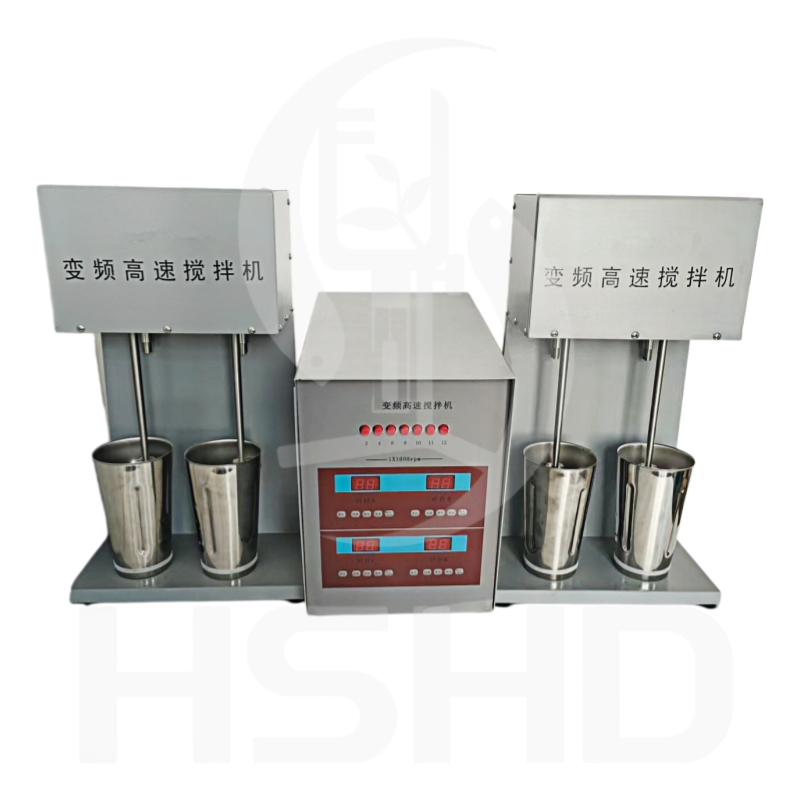

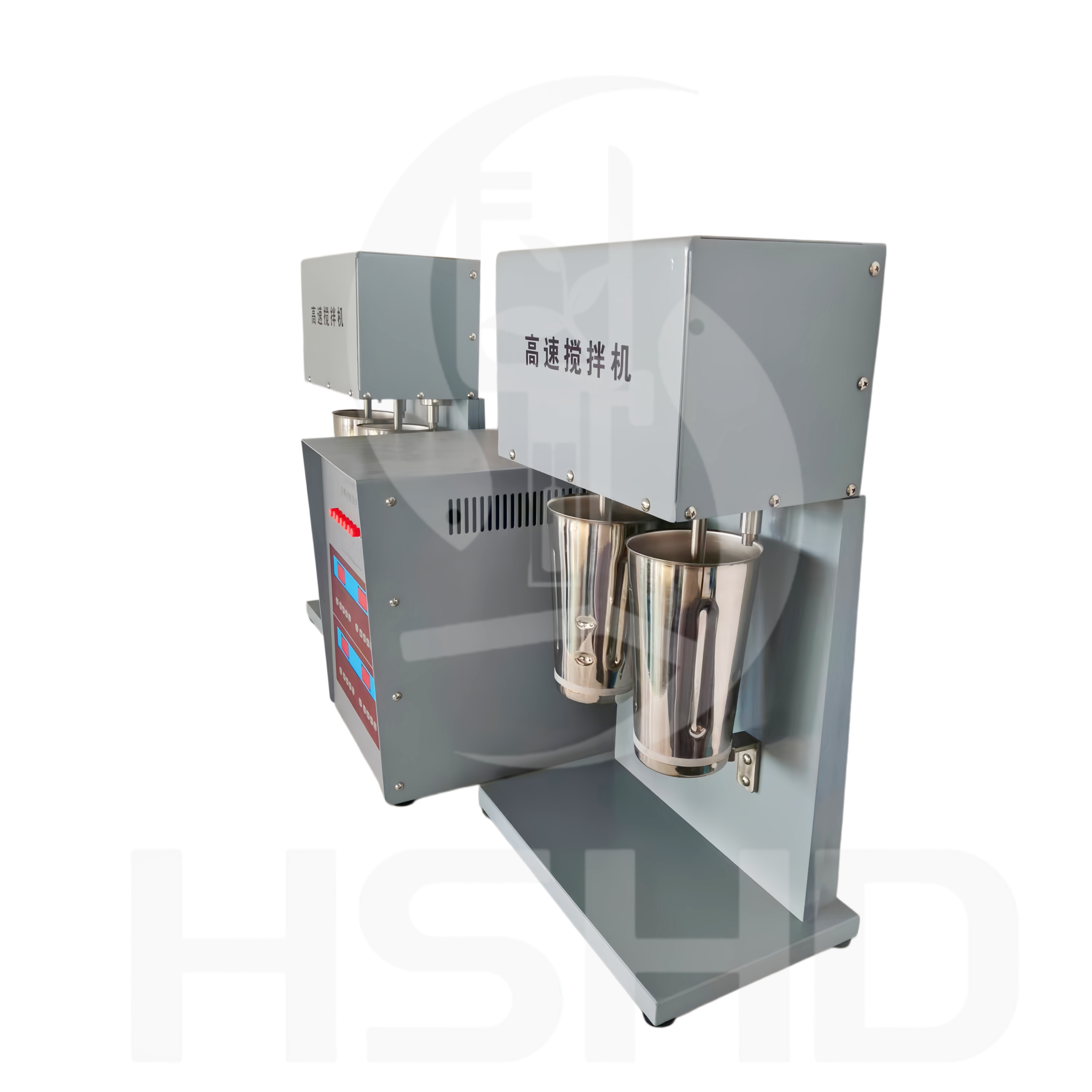

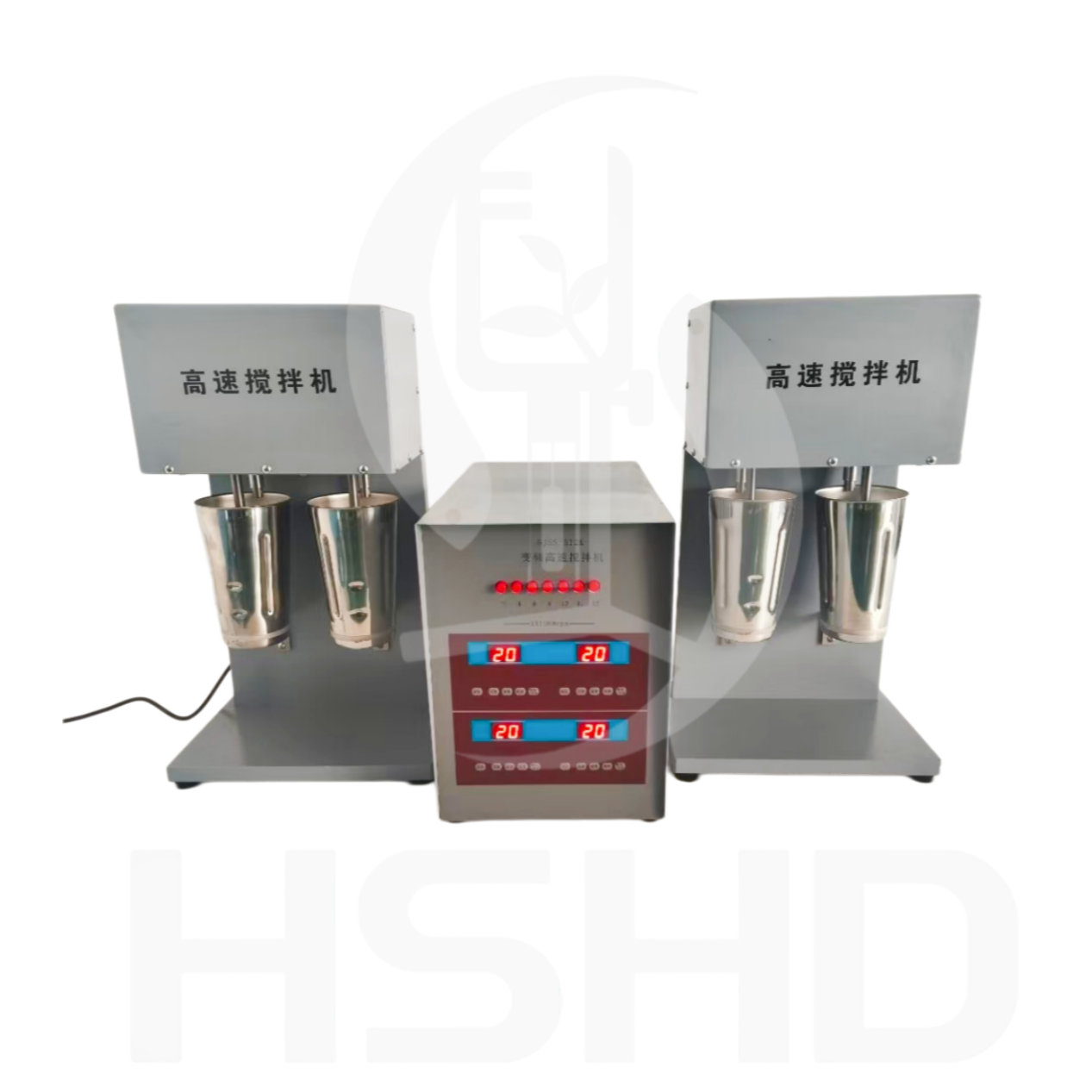

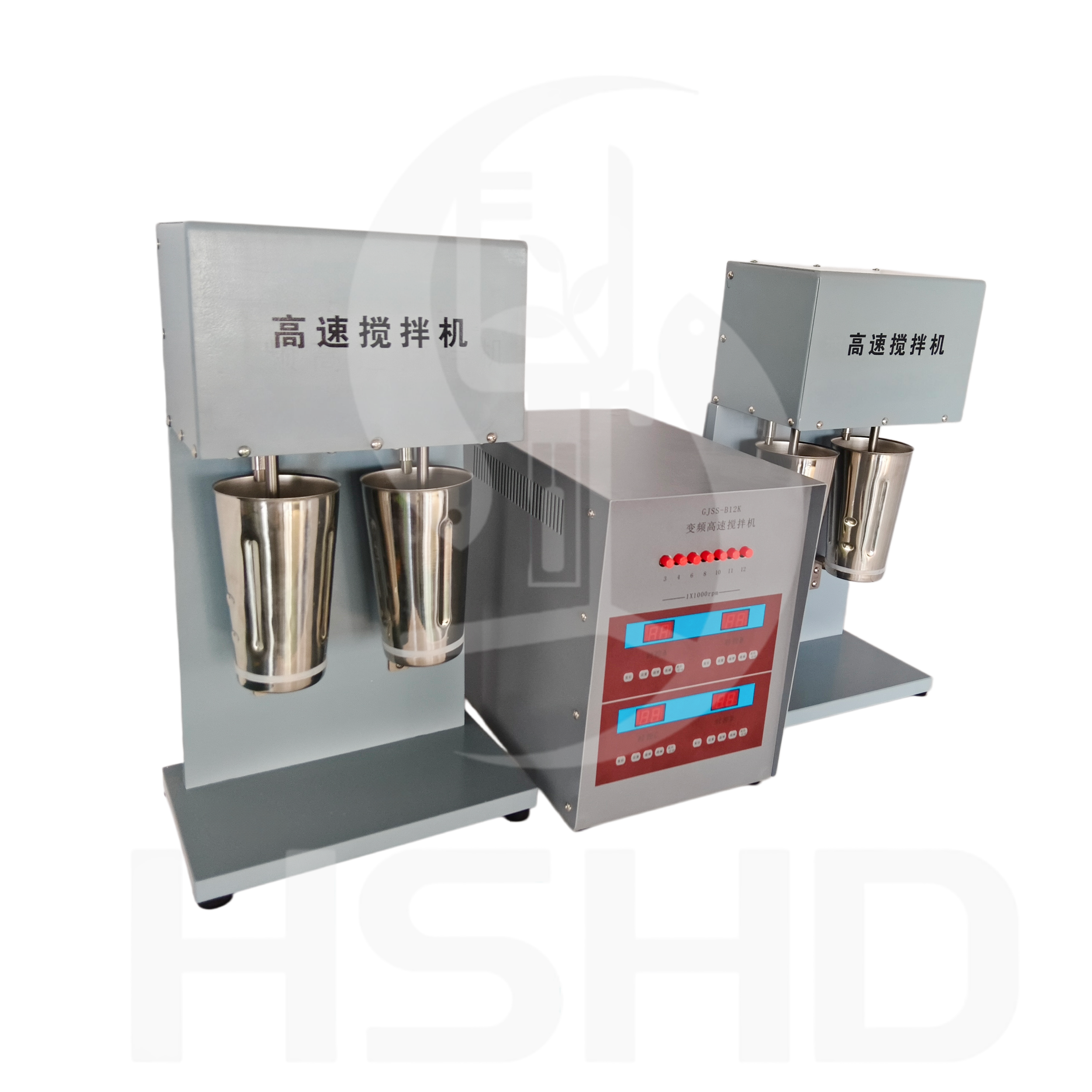

Model HSHD-6007 Variable Frequency High-Speed Mixer is a specialized experimental device used in industries such as petroleum, exploration, and chemical engineering. It is primarily designed for high-speed mixing of various drilling fluids, chemical reagents, and other materials used in oil drilling. This equipment is an ideal high-speed mixing solution.
The mixer series incorporates advanced frequency conversion technology and microcomputer control. It features functions such as timing, speed setting, and the ability for single-shaft or multi-shaft operation—either simultaneously or independently. The mixing blades are manufactured according to API standards.
The mixer is characterized by simple operation, high starting torque, stable speed, reliable performance, and low noise.
2.Model and Specifications
| Model | Name |
| HSHD-6007 | Mixer |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Supply | AC 220V±5% 50Hz |
| 2 | Rated Power | 200 W *4 |
| 3 | No-Load Speed | 3000、4000、6000、8000、10000、11000、12000r/min |
| 4 | Mud Cup Capacity | 1000ml *4 |
| 5 | Timing Range | 1～99mini |
| 6 | Ambient Temperature | ～40℃ |
| 7 | Ambient Humidity | 10～85RH% |
