1.Overview

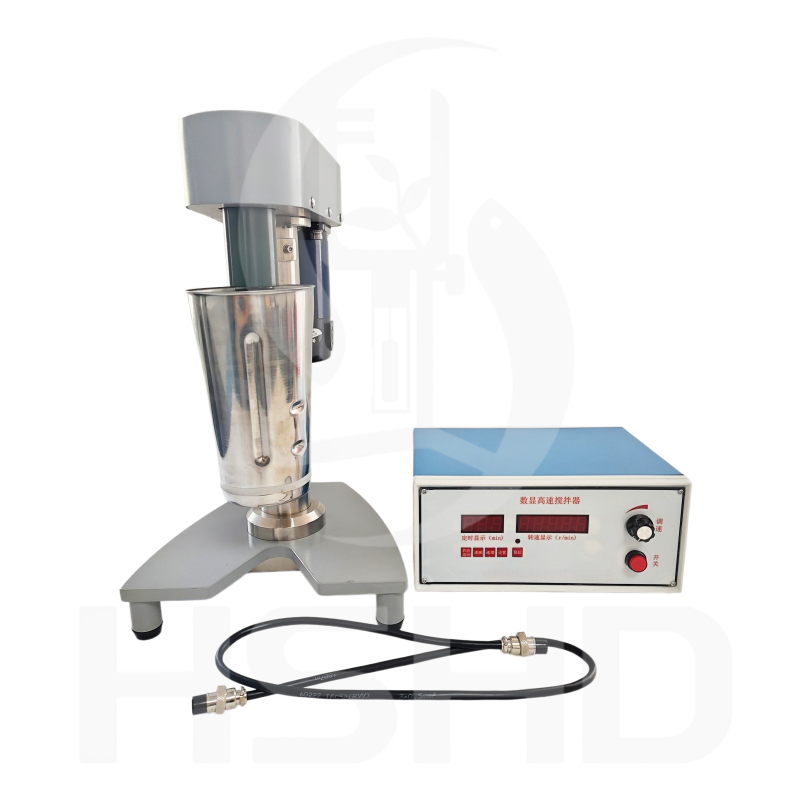

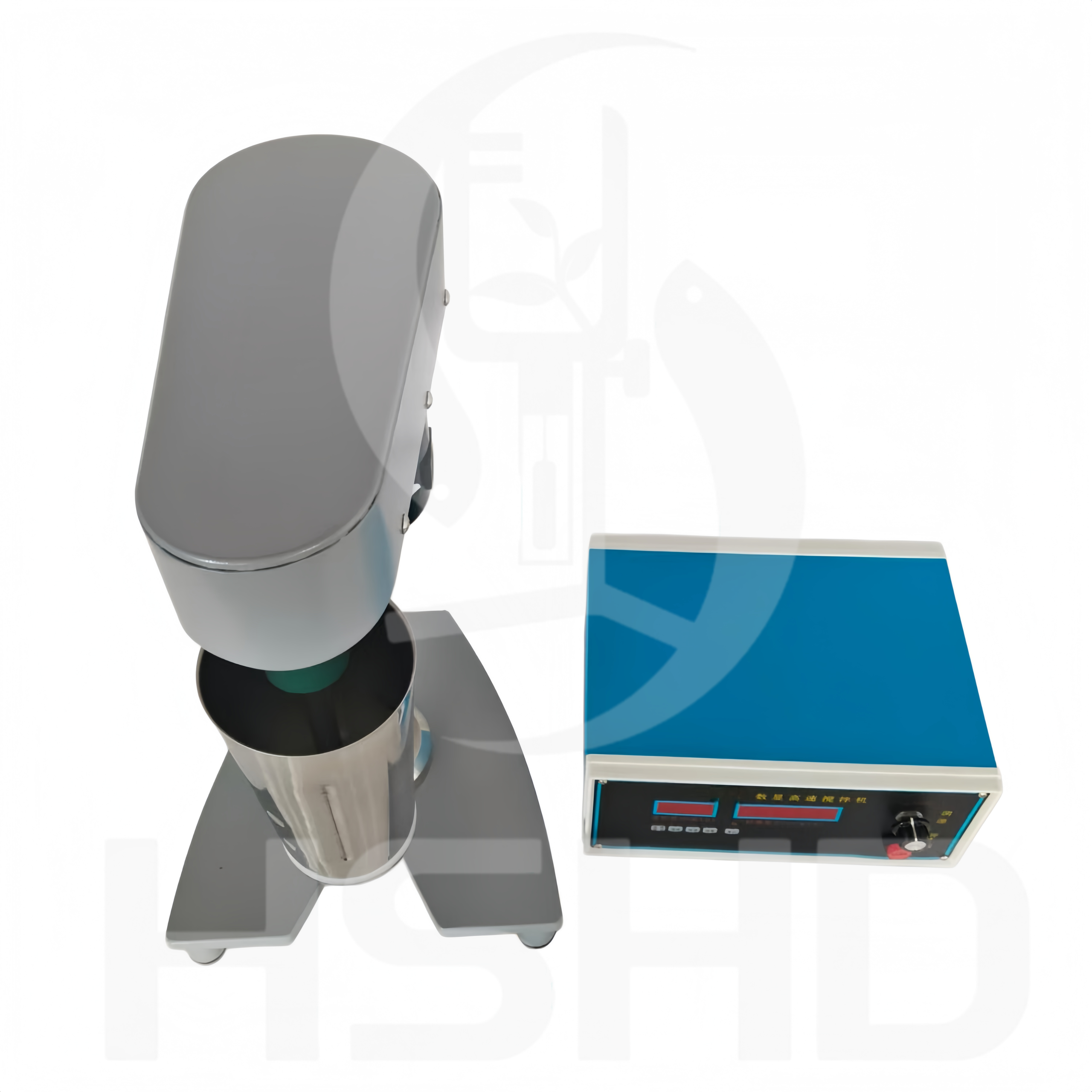

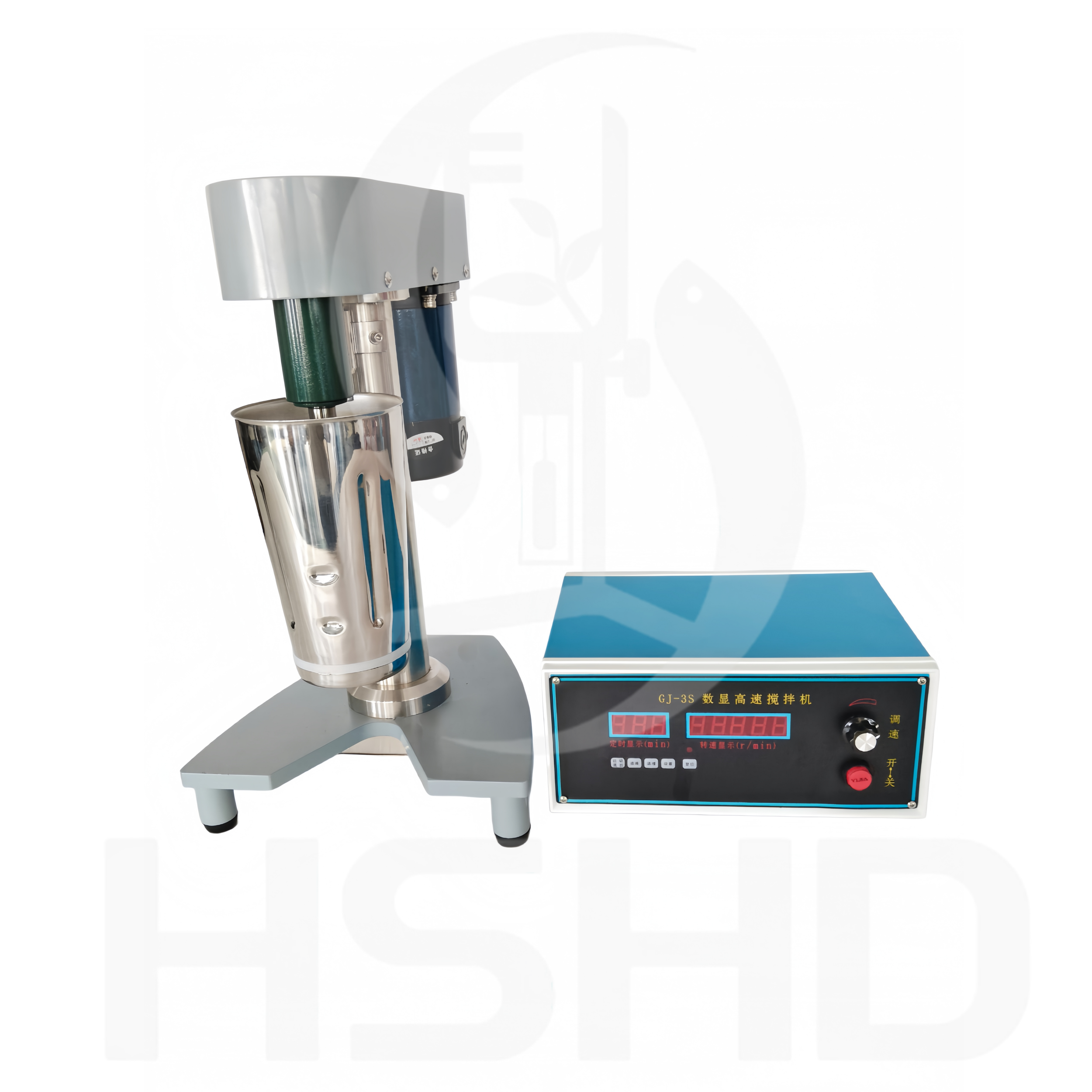

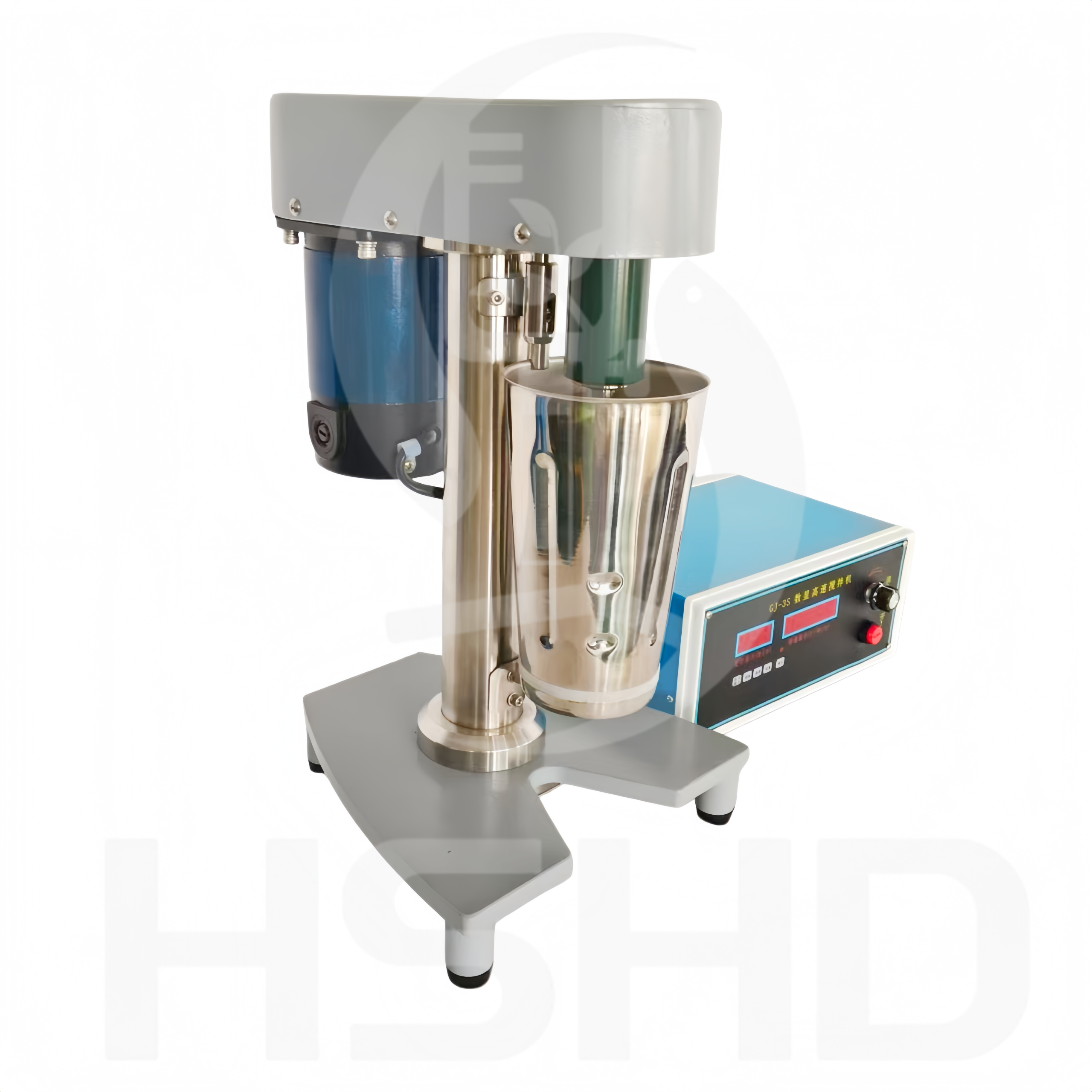

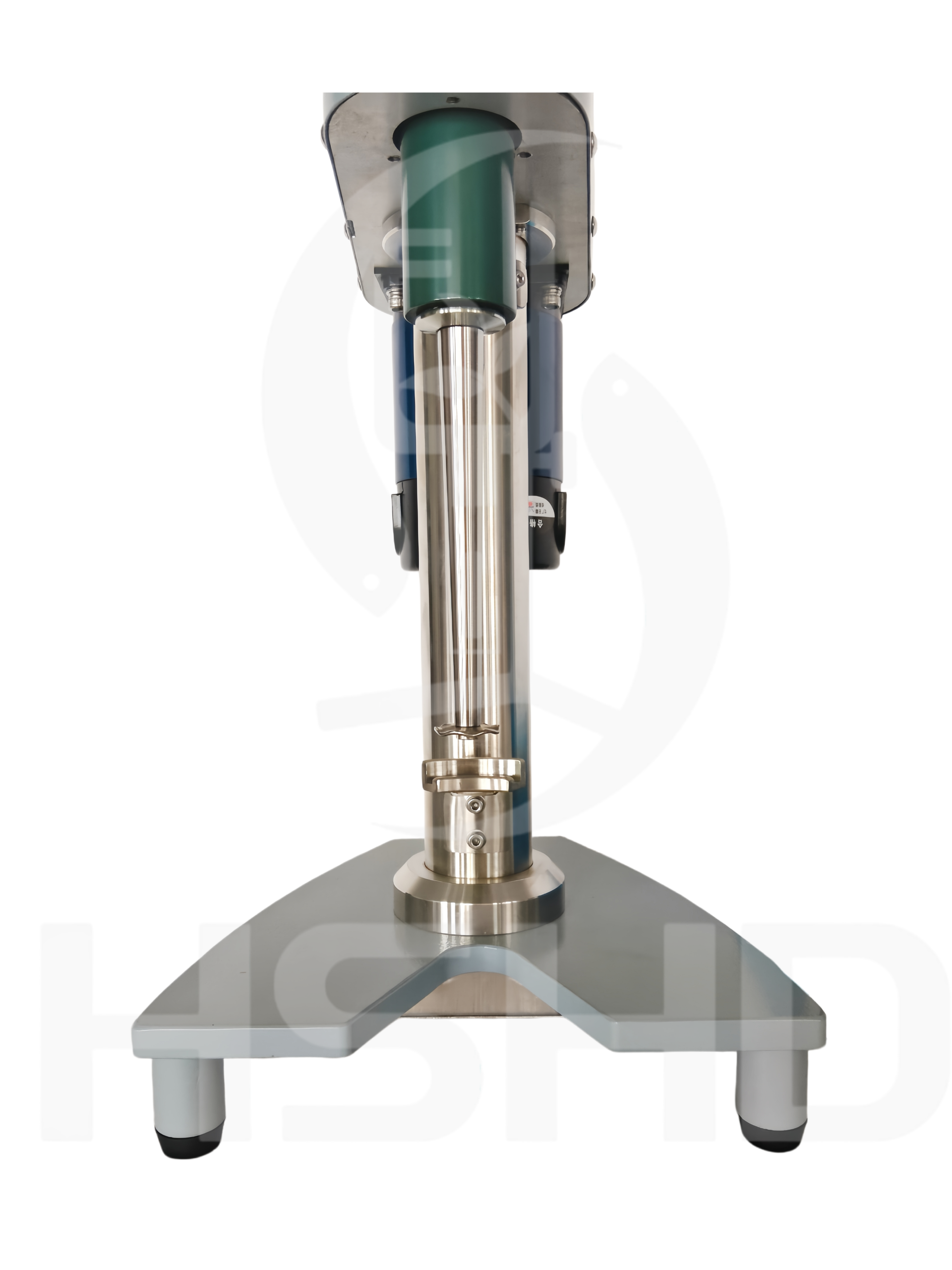

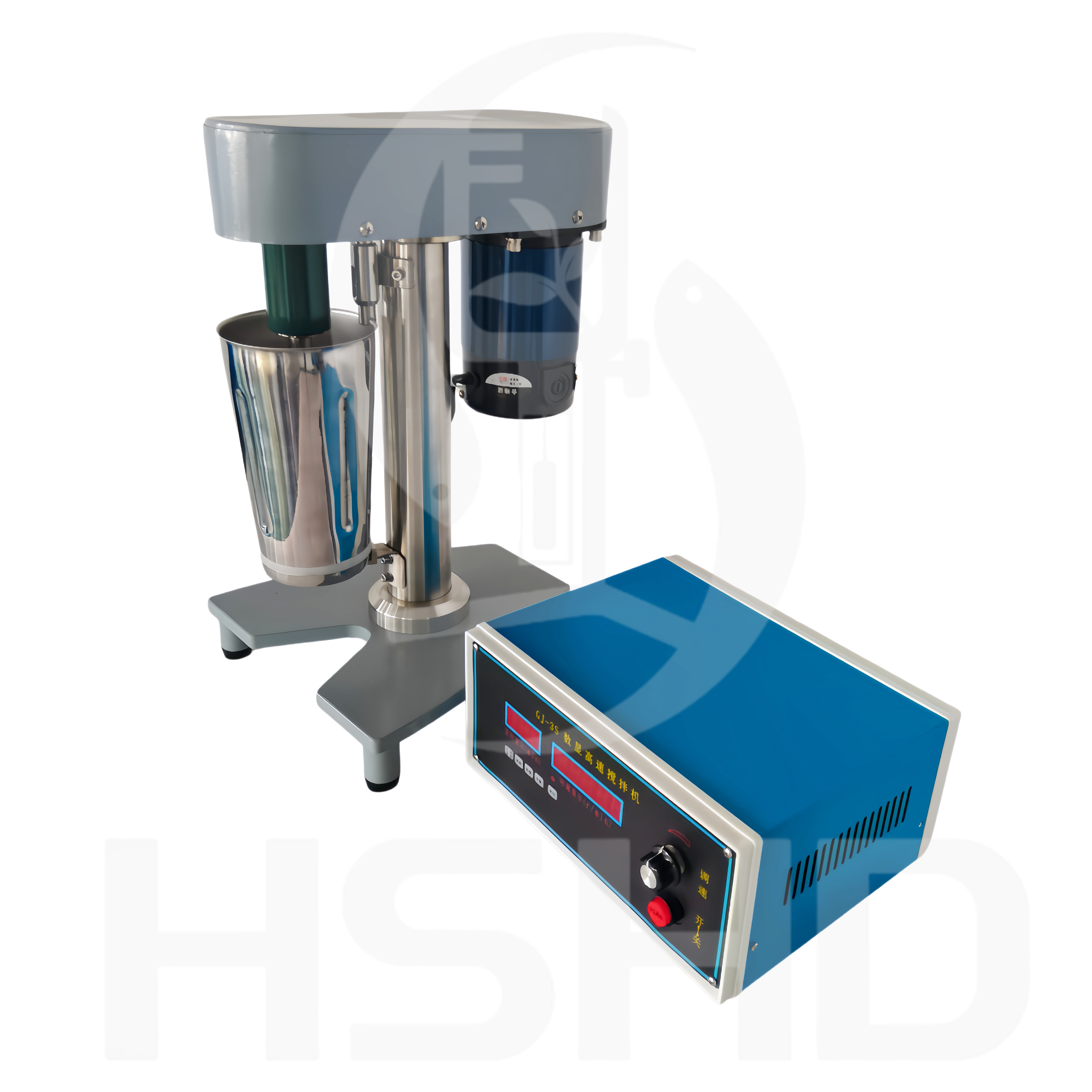

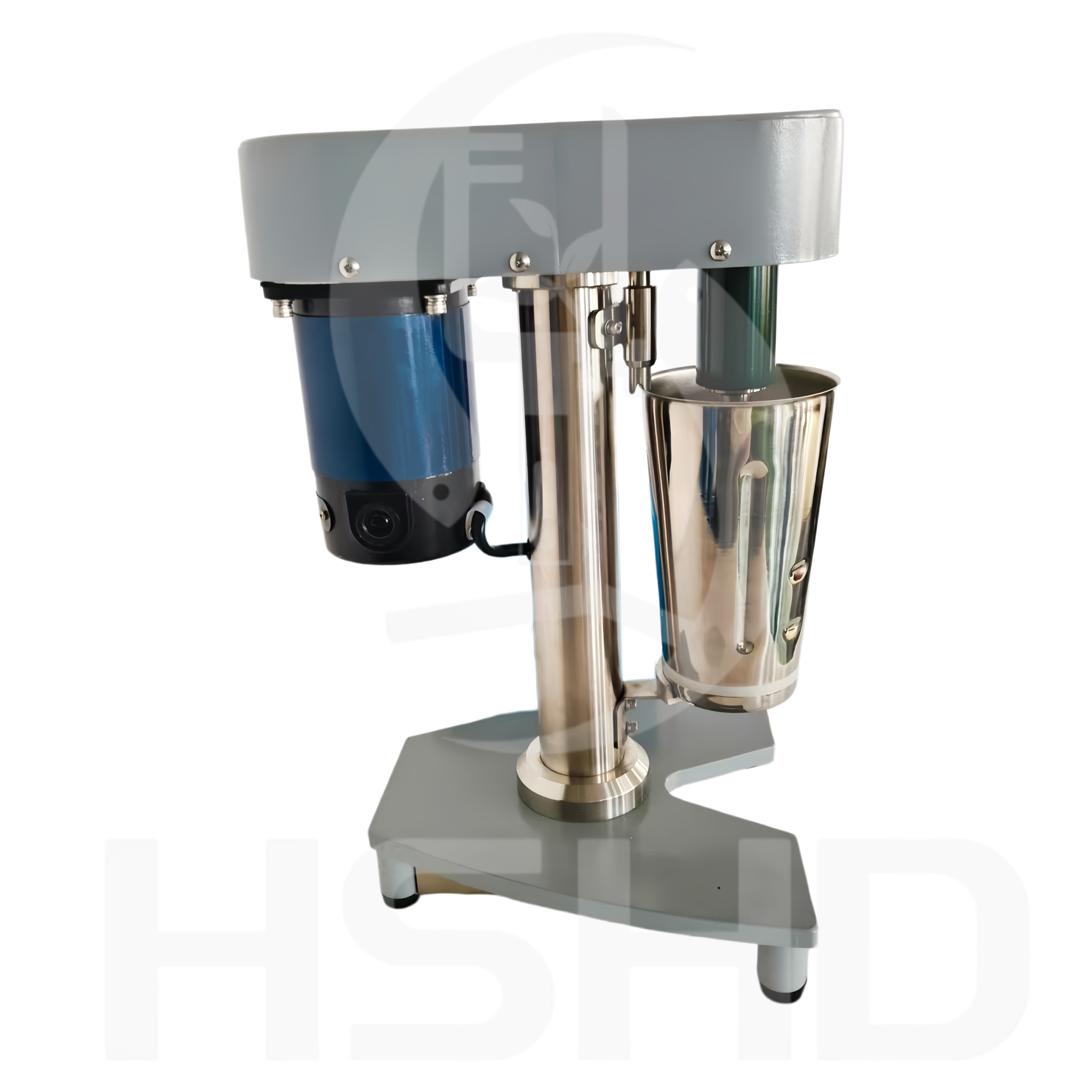

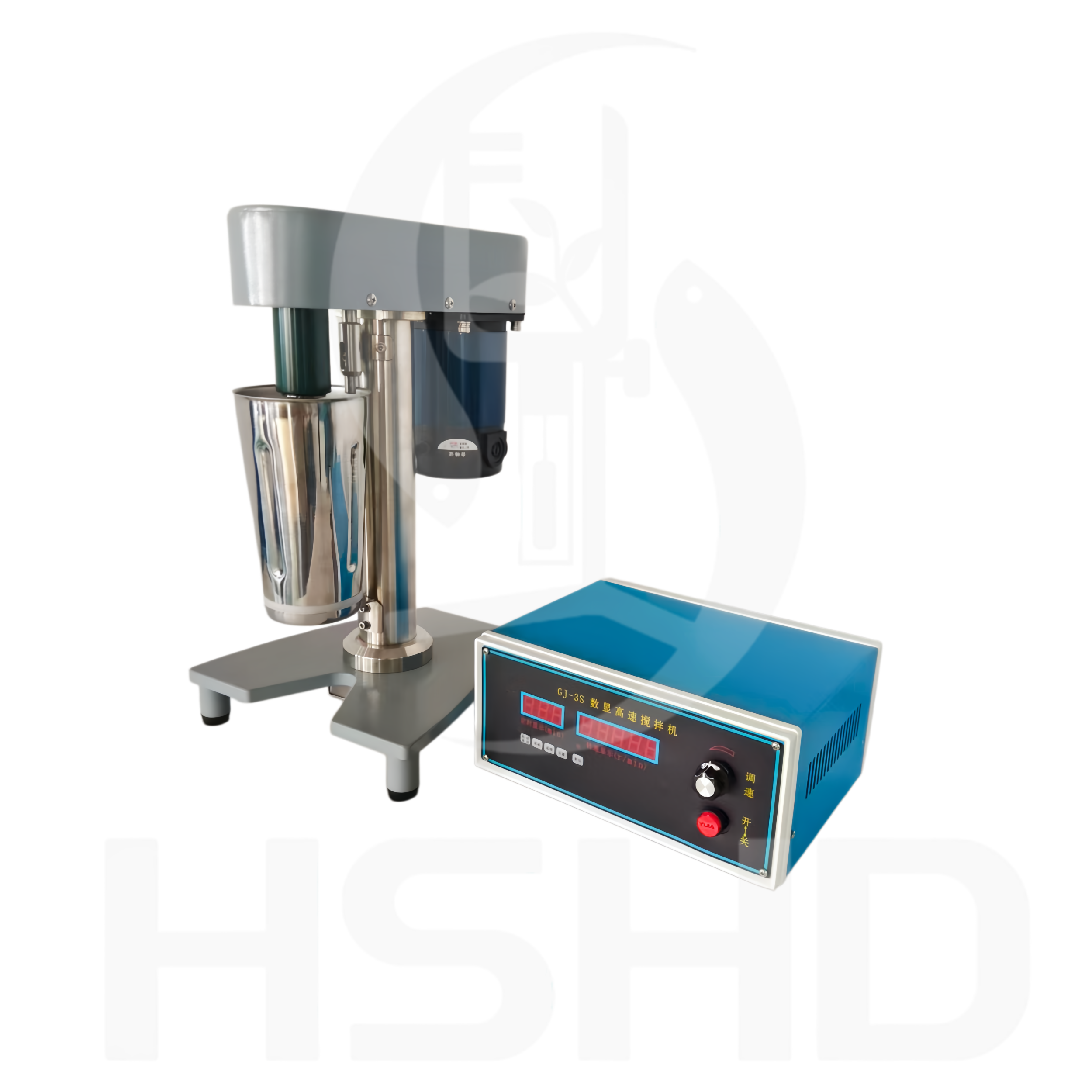

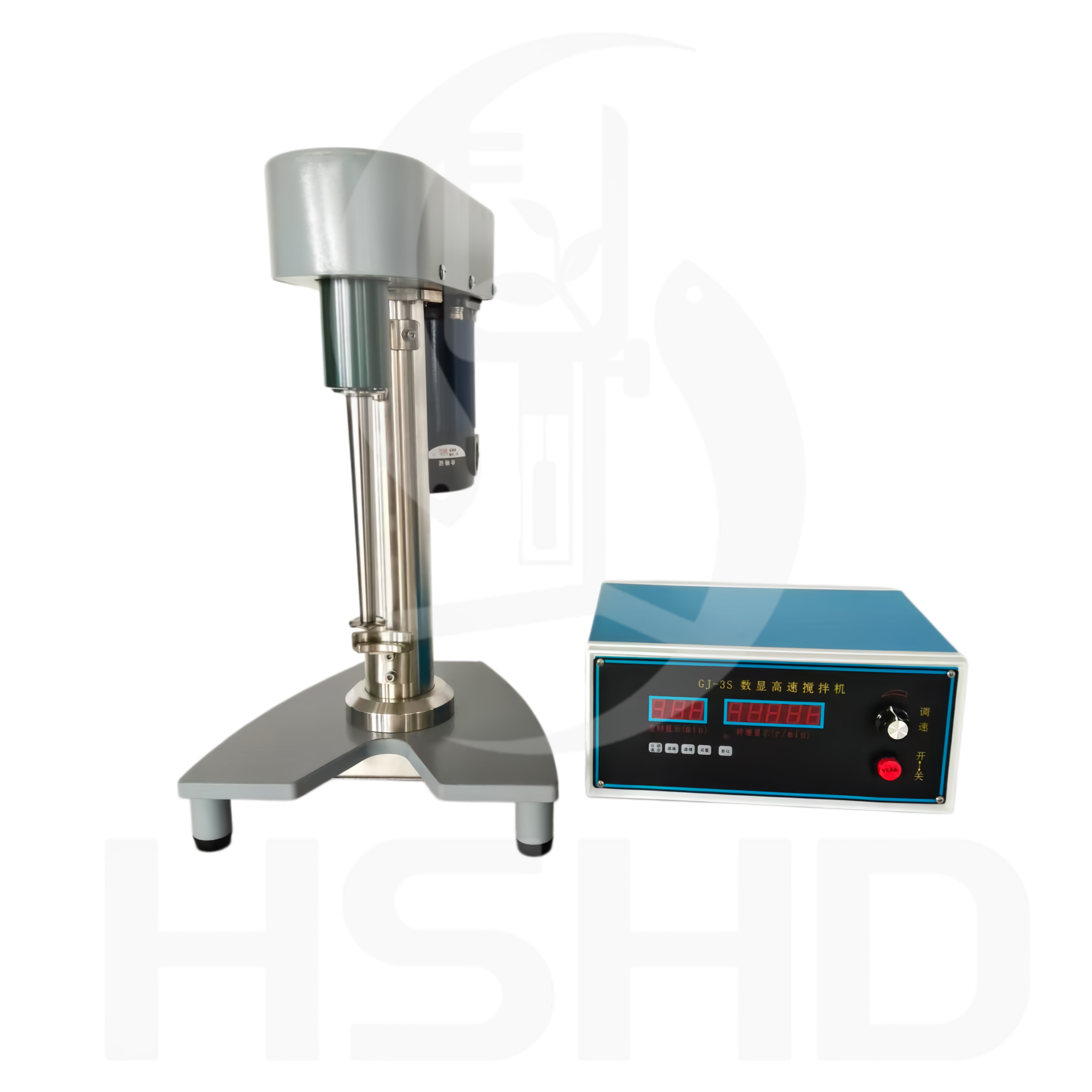

Model HSHD-6009 mixer is a specialized experimental device used in the petroleum exploration and drilling industry. The main motor drives the mixing shaft through belt transmission, and it is primarily used for mixing various drilling fluids for oil drilling. Motor control is achieved via a power speed controller, which features stepless speed regulation. The actual mixing speed is displayed digitally on the panel of the power speed controller. The speed adjustment range is 0 to 12,000 r/min. The mixing blades are manufactured according to API standards. The structure is simple, reasonable, and reliable, offering features such as high starting torque and convenient, reliable speed adjustment.
2.Model and Specifications
| Model | Name |
| HSHD-6009 | Mixer |
3.Main Technical Parameters
| No. | Category | Specification |
| 1 | Power Supply | AC 220V±5% 50Hz |
| 2 | Rated Power | 200 W |
| 3 | No-Load Speed | 0～12000r/min±3% |
| 4 | Mud Cup Capacity | 1000ml |
| 5 | Timing Range | 1～99mini |
| 6 | Ambient Temperature | ～40℃ |
| 7 | Ambient Humidity | 10～85RH% |
