Overview

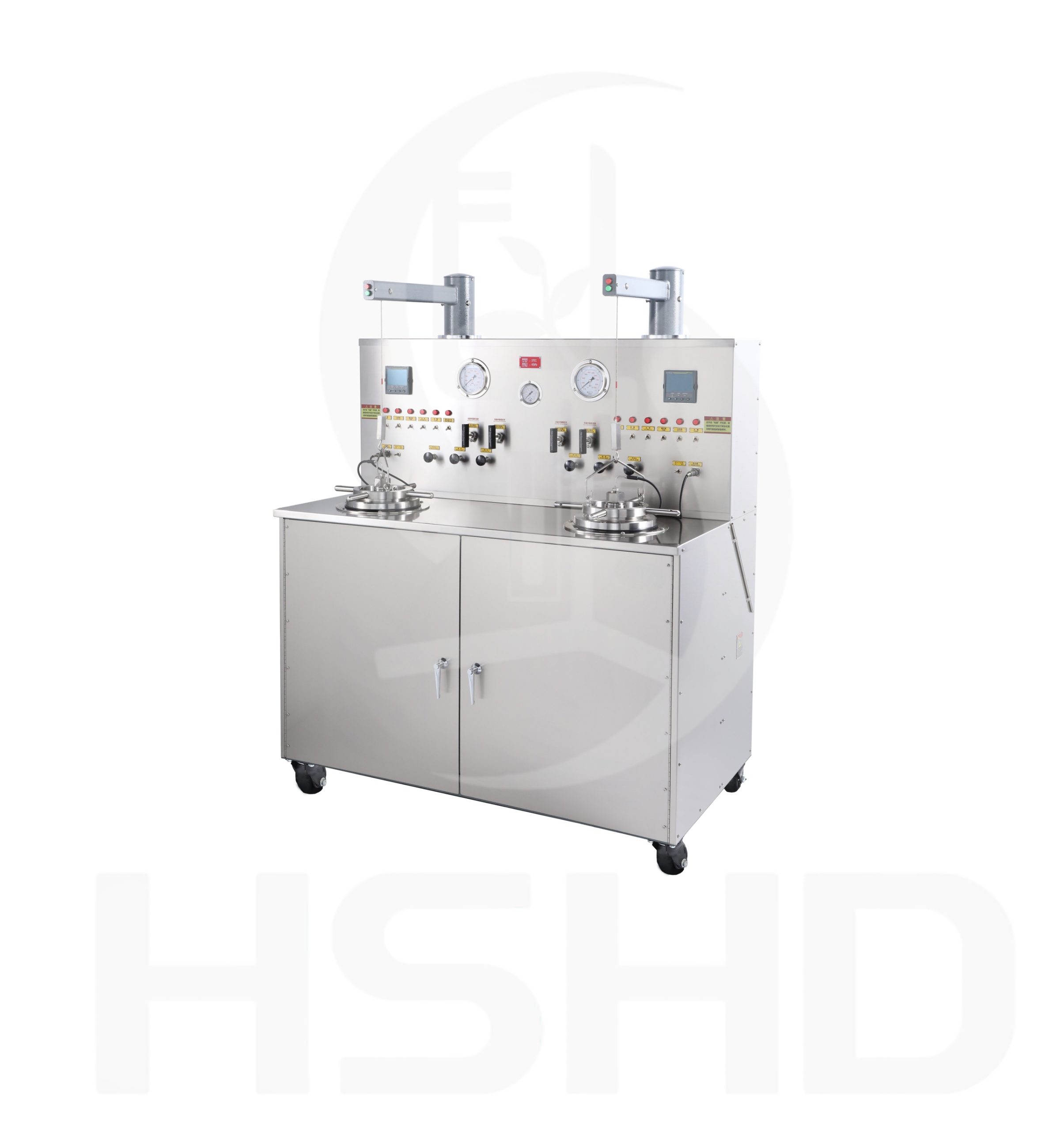

The HSHD-7022 Dual-Cell Pressurized Curing Chamber is designed per API Specification 10 for curing oil-well cement strength specimens under HT/HP conditions. It is built with a stainless steel housing and premium international components, ensuring reliable performance at a high standard.

Features
1.The pressurized curing chamber adopts fully automatic temperature and pressure control. Pressure is controlled through a preset program on the British Eurotherm controller.
2.The instrument is equipped with a micron-level water filtration device to ensure the cleanliness of the water supply, thereby extending the service life of the booster pump.
3.A cooling water jacket (independently developed by our company) is installed on the high-pressure pipeline between the chamber body and the pressure relief pump. This ensures that, during the heating process and under constant pressure, the water temperature discharged from the chamber to the relief pump meets the requirements for long-term use of the relief pump.
4.The cooling method of the pressurized curing chamber after the test is internal cooling, which offers high cooling efficiency.
5.Electric hoist lifting facilitates easy assembly and disassembly of the chamber lid.

Parameter
Maximum Temperature: 375℃
Maximum Pressure: 40MPa
Maximum Working Temperature: 300℃
Maximum Working Pressure: 34MPa
Power Supply: 220V (±10%) / 50Hz
Power: 8.2kW×2
Cooling Water: 0.1～0.4MPa
Air Supply: 0.3～0.7MPa
Overall Dimensions: 1325mm×755mm×1750mm
Net Weight: 800kg
