1. Overview

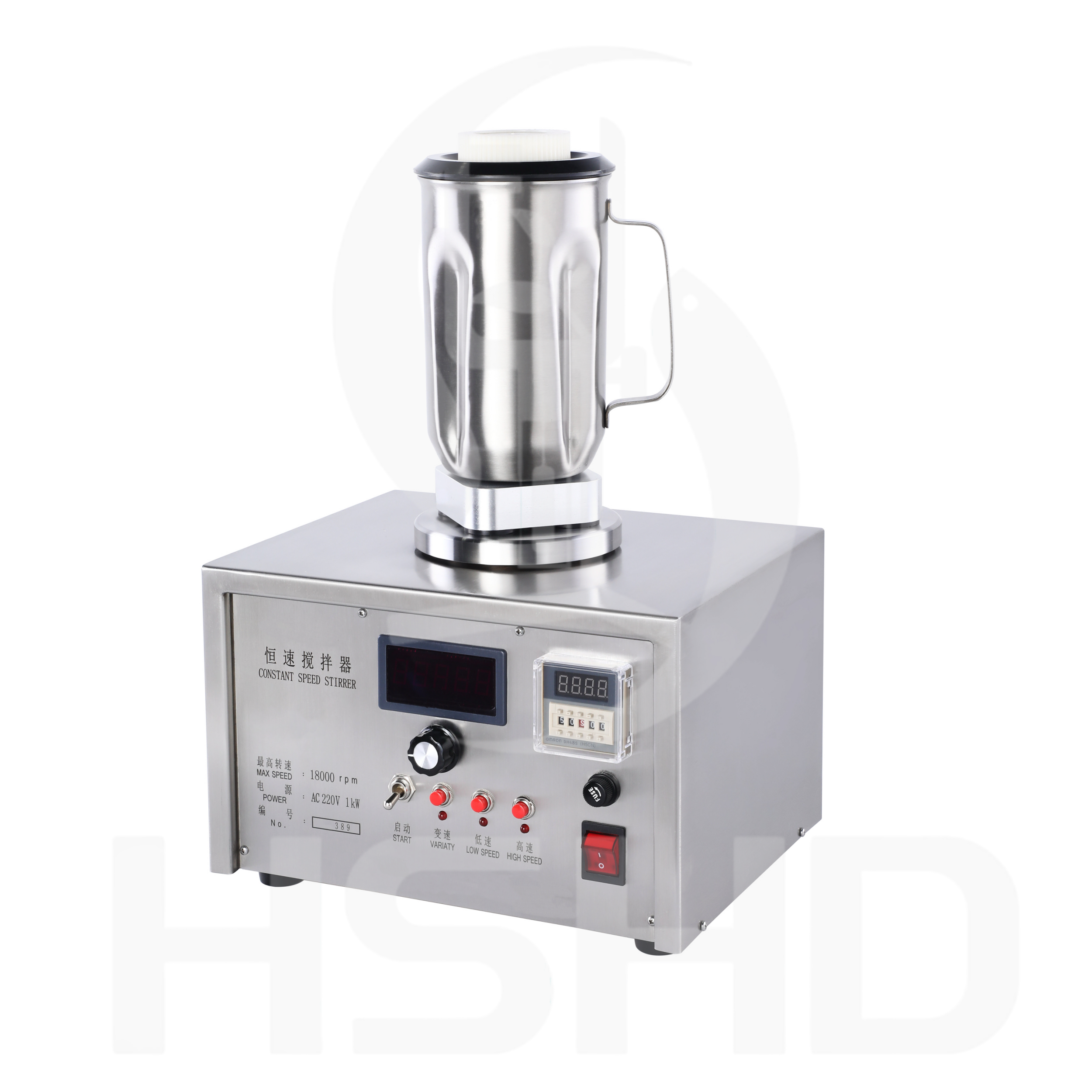

The Model HSHD-3160 Constant Speed Mixer is designed and manufactured in strict accordance with API standard specification 10 and is used for high-speed mixing of cement slurry samples for cementing.
The instrument shell is designed with all stainless steel, which is durable for a long time; it adopts a high-speed brushless motor and driver, which runs smoothly and has low noise.

2.Features and Specifications

▪ The instrument adopts a portable design, which is suitable for transportation and cementing site composite test data.
▪ The instrument shell is designed with all stainless steel, which is durable for a long time.
▪ The mixing cup is made of hard stainless steel, which has excellent wear resistance and corrosion resistance.
▪ The instrument adopts DC high-speed brushless motor and driver, with low noise and long service life.
▪ The speed adjustment of the instrument is stable, and the speed control accuracy is high.
▪ Digital PID closed-loop control, digital display
▪ Complete protection functions, protection against overheating, overcurrent, overvoltage, overspeed, etc.

3.Main Technical Parameters

Power SupplyAC220V（±10 %）50Hz (It can be variable from country )
Wattage: 1000 Watts
Maximum Speed: 18000 rpm
Constant Speed: 4000 rpm and 12000 rpm
Speed Control Accuracy：<±2%
Slurry Cup Capacity：1 Litter
Operation Temperature: 50 to 122OF / 10 to 50℃
Compliance: API Spec 10A
Dimensions: 290*240*450 mm
Weight: 44 lbs/ 20kg
